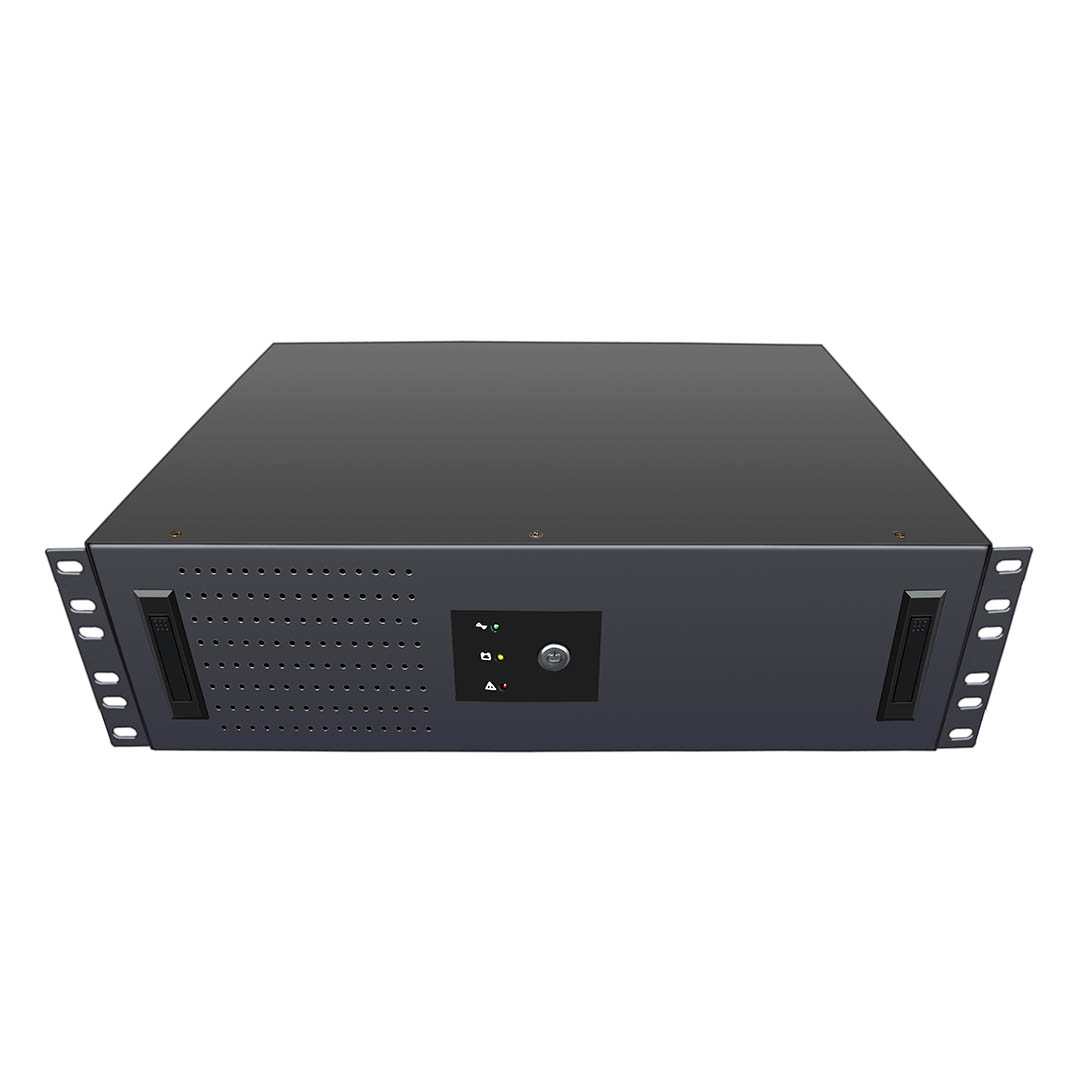

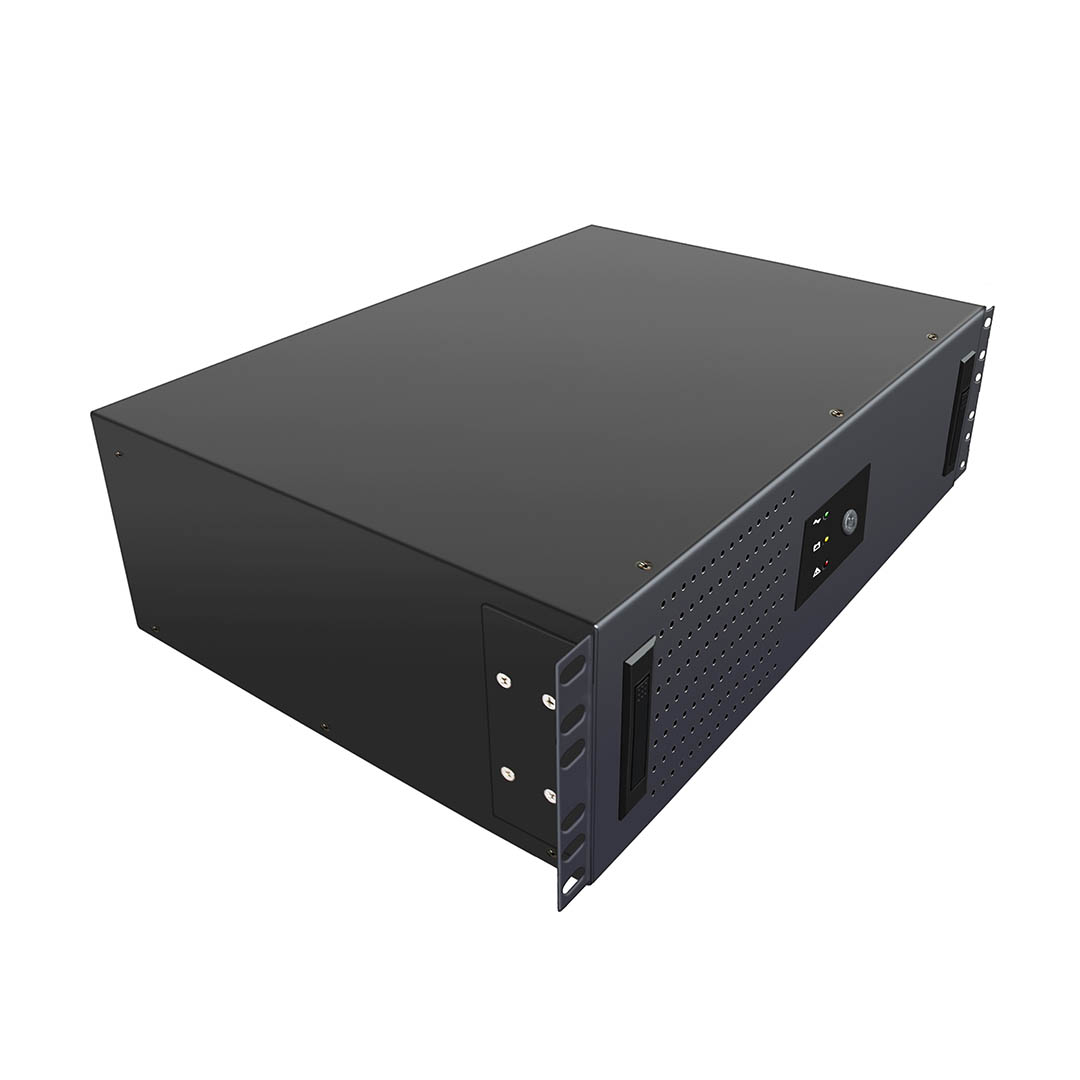

Rack Line Interactive UPS 1.5K-3KVA

This product is a customized product. The pictures and prices are only for display. If you need to order, please contact online

Model Number:STR series

Capacity:1000VA/600W
Input voltage:110/120/220/230/240VAC
Transfer Time:Typical 2-6ms
Display:LED Light


  • Description
  • Additional Information
  • Common problem

Overview


Quick Details

Warranty:1 Year, 12 Months + PCBA Spare Part

Place of Origin:Guangdong, China
Brand Name:OEM
Model Number:STR series
Phase:Single Phase
Protection:Overvoltage, overload, overcharge, discharge protection
Type:Line Interactive
Application:Security / Monitoring / Alarm
Capacity:1000VA/600W
Input voltage:110/120/220/230/240VAC
Transfer Time:Typical 2-6ms
Display:LED Light
Certification:CE/ROSH/ISO
Wave Form:Simulated Sine Wave
Battery Type:Inbuilt Lead Acid Battery 7AH*2
Material:Metal case


Packaging & Delivery

Selling Units:Single item

Single package size: 49X90X35 cm
Single gross weight:11.000 kg
Package Type:one pcs put in one poly bag, together with power line put into one color box, 2PCS per carton

Lead Time:

Quantity(sets)
1 - 10
>10
Est. Time(days)
7
To be negotiated



 Features of our ups prices
A. Excellent microprocessor control optimizes reliability
B. Built in super smart charger, shorten charging time
C. Boost and buck AVR for voltage stabilization
D. Auto restart while AC is recovering
E. Off mode charging function
F. Simulated Sinewave
G. Cold start function

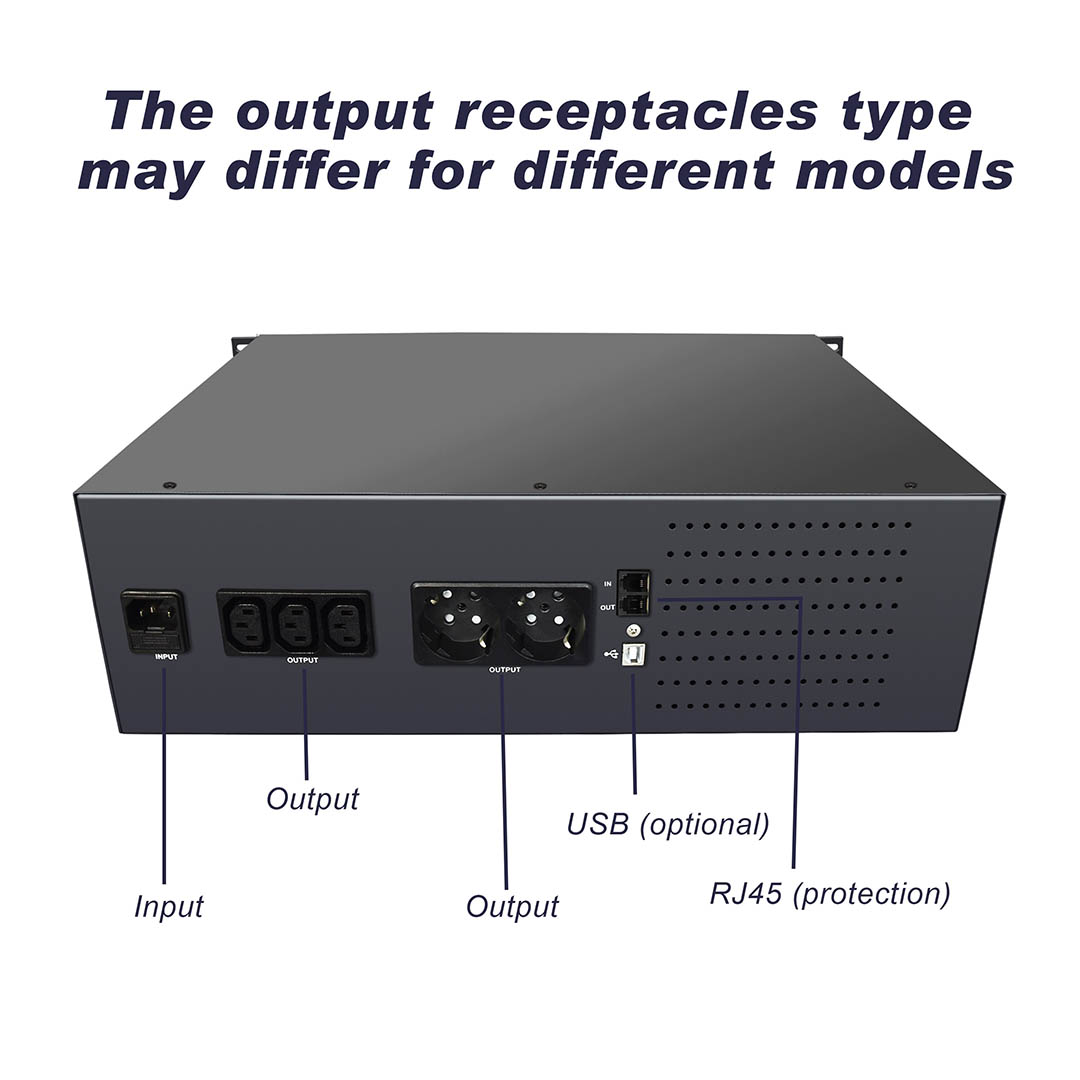

H. Optional USB/RS-232 communication port and RJ-11 phone protection

I.  Offering LED and LCD panels for selection





Product Description
Top-rated ups rack 1000va ups power backup to Europe

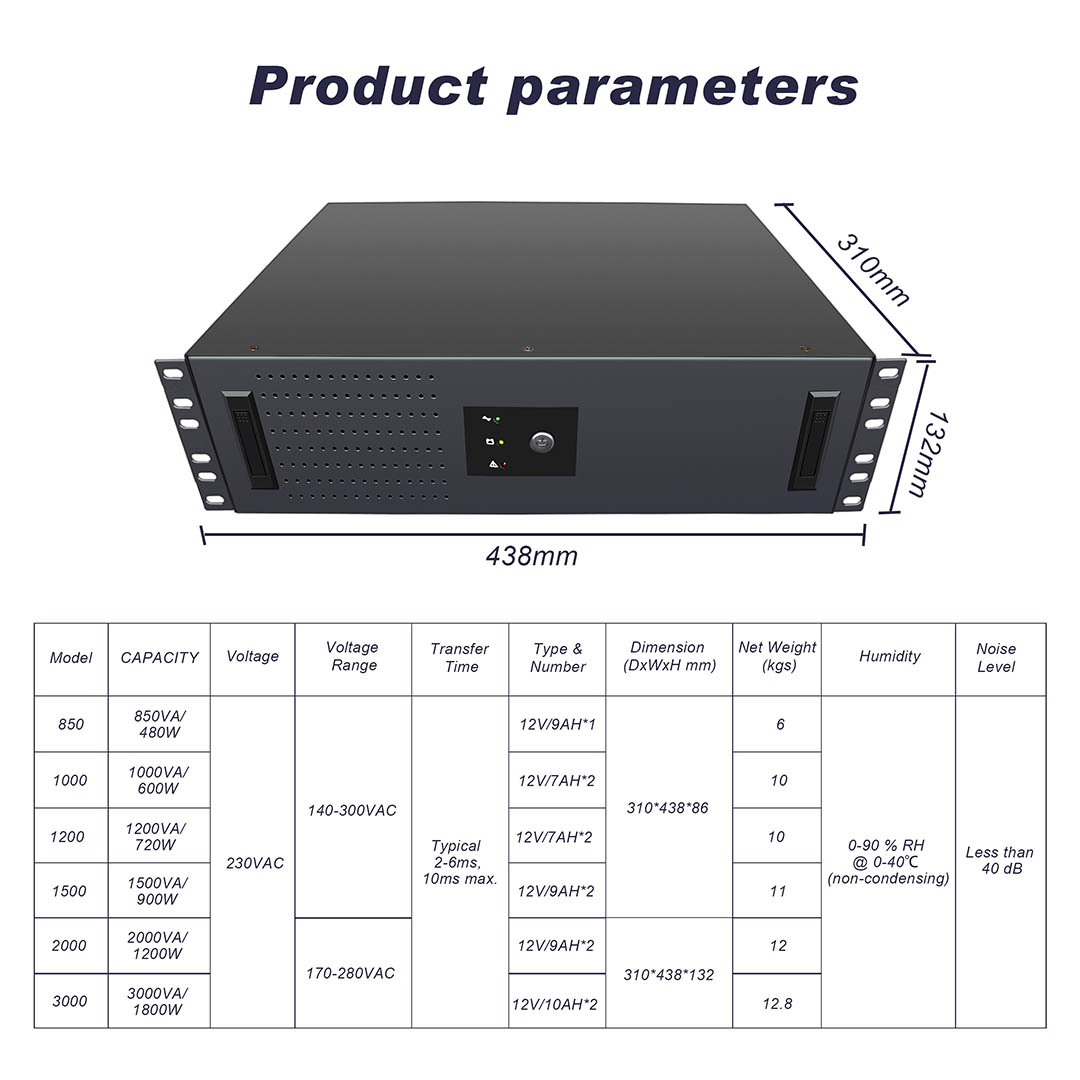

Model

STR450

STR650

STR850

STR1000

STR1500

STR2000

Capacity

450VA/240W

650VA/360W

850VA/480W

1000VA/600W

1500VA/900W

2000VA/1200W

INPUT

Voltage

110/120 VAC or 220/230/240 VAC

Voltage Range

81-145VAC or 162-290VAC

Frequency Range

60/50 Hz (Auto sensing)

OUTPUT Voltage

110/120 VAC or 220/230/240 VAC

AC Voltage Ragulation (Bat Mode)

±10%

Frequency Range (Bat Mode)

60Hz or 50Hz ± 1Hz

Transfer time

Typical 2-6ms

Waveform (Bat Mode)

Simulated Sinewave

Battery

Battery Type&Number

12V 4.5Ah*1

12V 7Ah*1

12V 9Ah*1

12V 7Ah*2

12V 9Ah*2

12V 9Ah*2

Charging ability

4-6 hours recover to 90% capacity

Protection



Full protection

Overload,discharge,and overcharger protection

INDICATIONS

LCD Display

AC/Battery Mode,Load/Battery Level,Input/Output Voltage,Overload,Fault,and low Battery

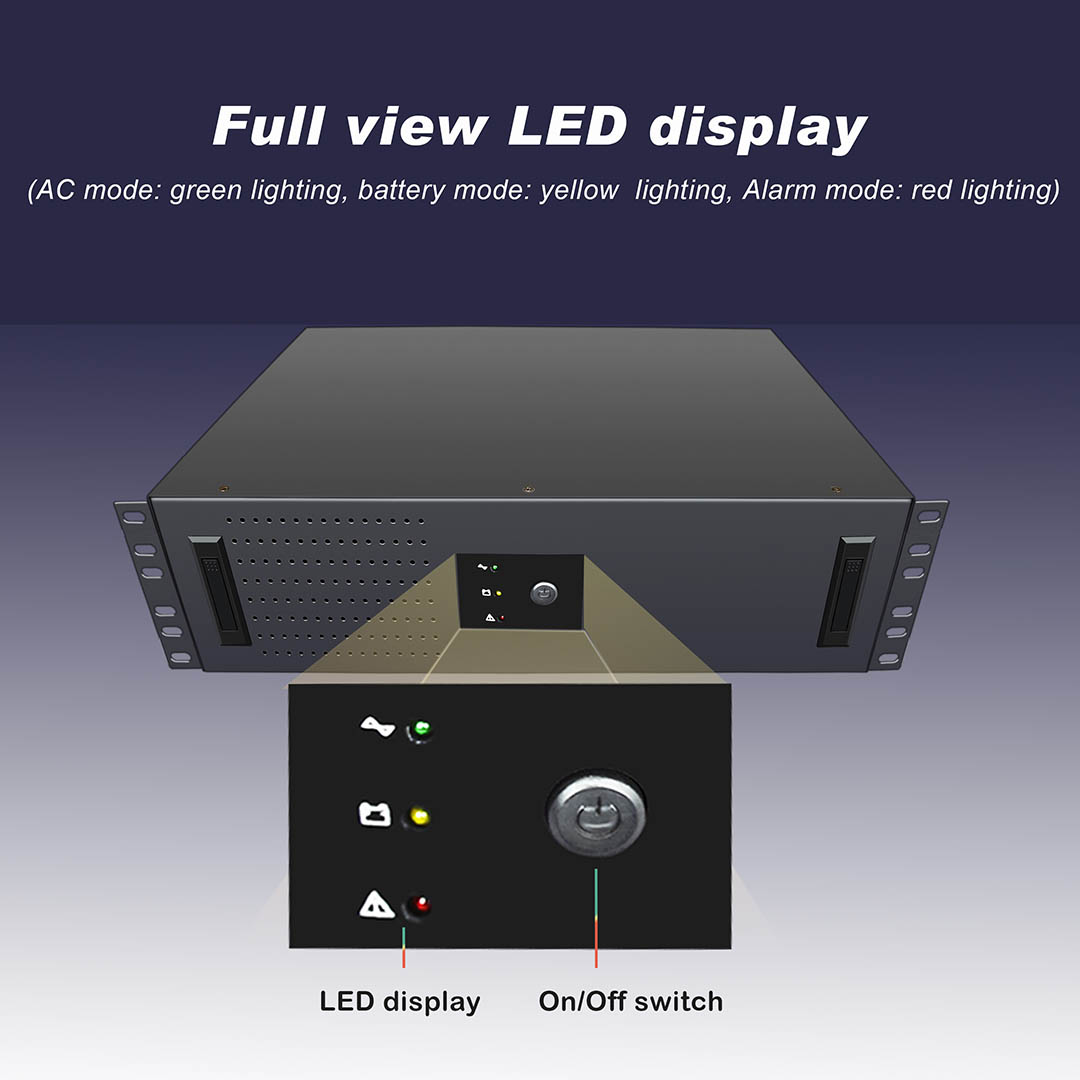

LED Display

AC Mode

Green lghting

The right green LED lighting&the 2nd to 5th green LEDs gradually lighting indicating load level

Battery Mode

Yellow flashing

The right green LED flashing&the 2nd to 5th green gradually lighting indicating battery capacity

Fault

Red lighting

Battery mode

Sounding every 10 seconds

Low battery

Sounding every second

Overload

Sounding every 0.5 seconds

Battery Replacement Alarm

Sounding every 2 seconds

Fault

Continuously sounding

Dimension,D*W*H(mm)

287*100*142



Net Weight (kgs)

3.5

4.2

4.9

8

11.1

11.5

Environment



Humidity

0-90% Relative Humidity 0-40 ℃ (Non-condending)

Noisy Level

Less than 40dB

Optional USB/RS232 Port

Supports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix  and MAC
