Overview

Quick Details

Warranty:1 year
Place of Origin:Guangdong, China
Brand Name:OEM
Model Number:HT series
Phase:Single Phase
Protection:Short Circuit
Weight:5.4kg

Type:Line Interactive

Application:Networking

Product name:HT series

Battery:9AH
Transfer Time:2-6ms
Input voltage:110/120/220/230/240vac
Battery Type:Lead Acid Battery
Display:LCD
Wave Form:Simulated Sine Wave
Frequency:60/50Hz
Charging time:4- 6 Hours
Dimension:275*200*117mm

Supply Ability
Supply Ability 50000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
OEM package: 4PCS with color box and one carton OR 2PCS with color box and one carton as option.
Port shenzhen

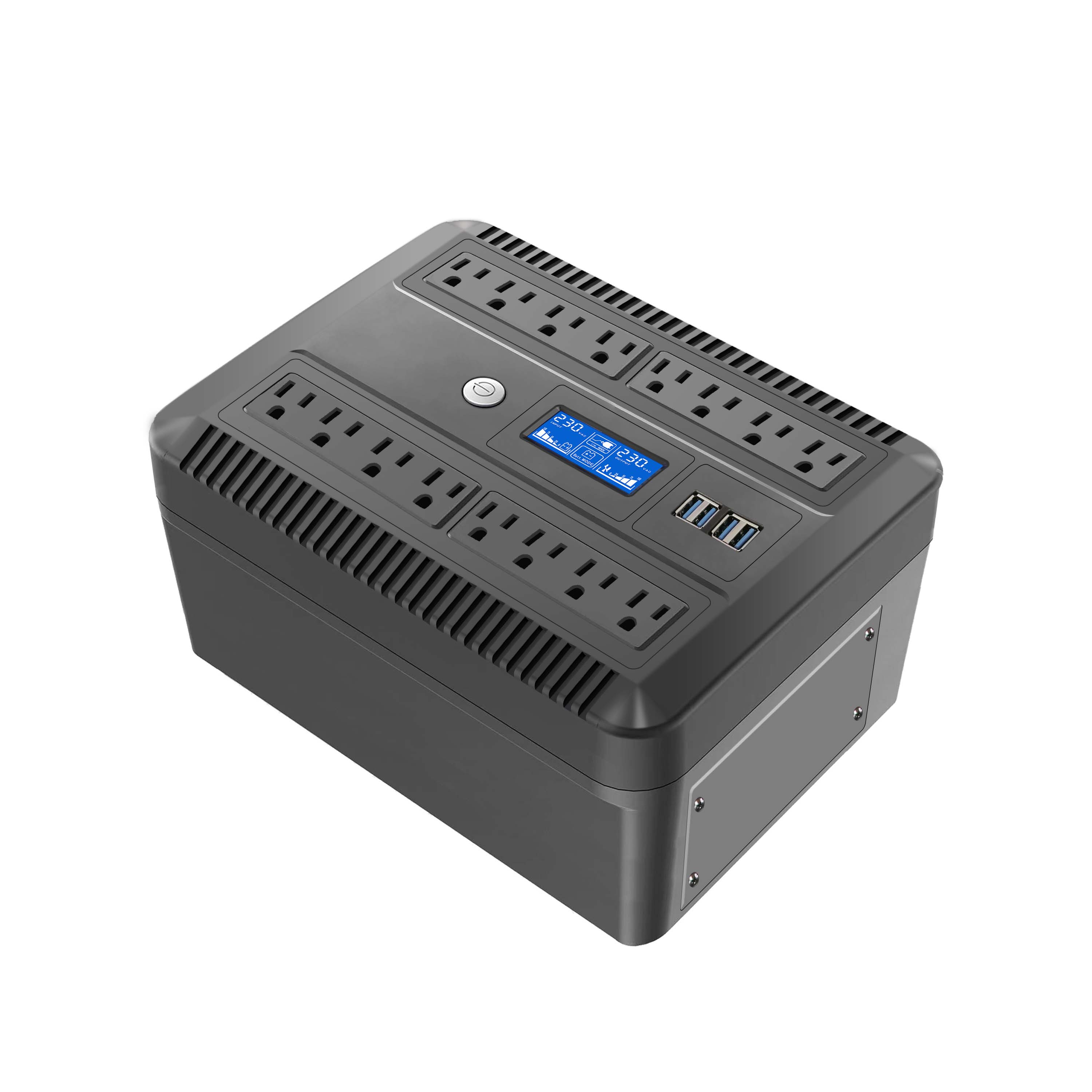

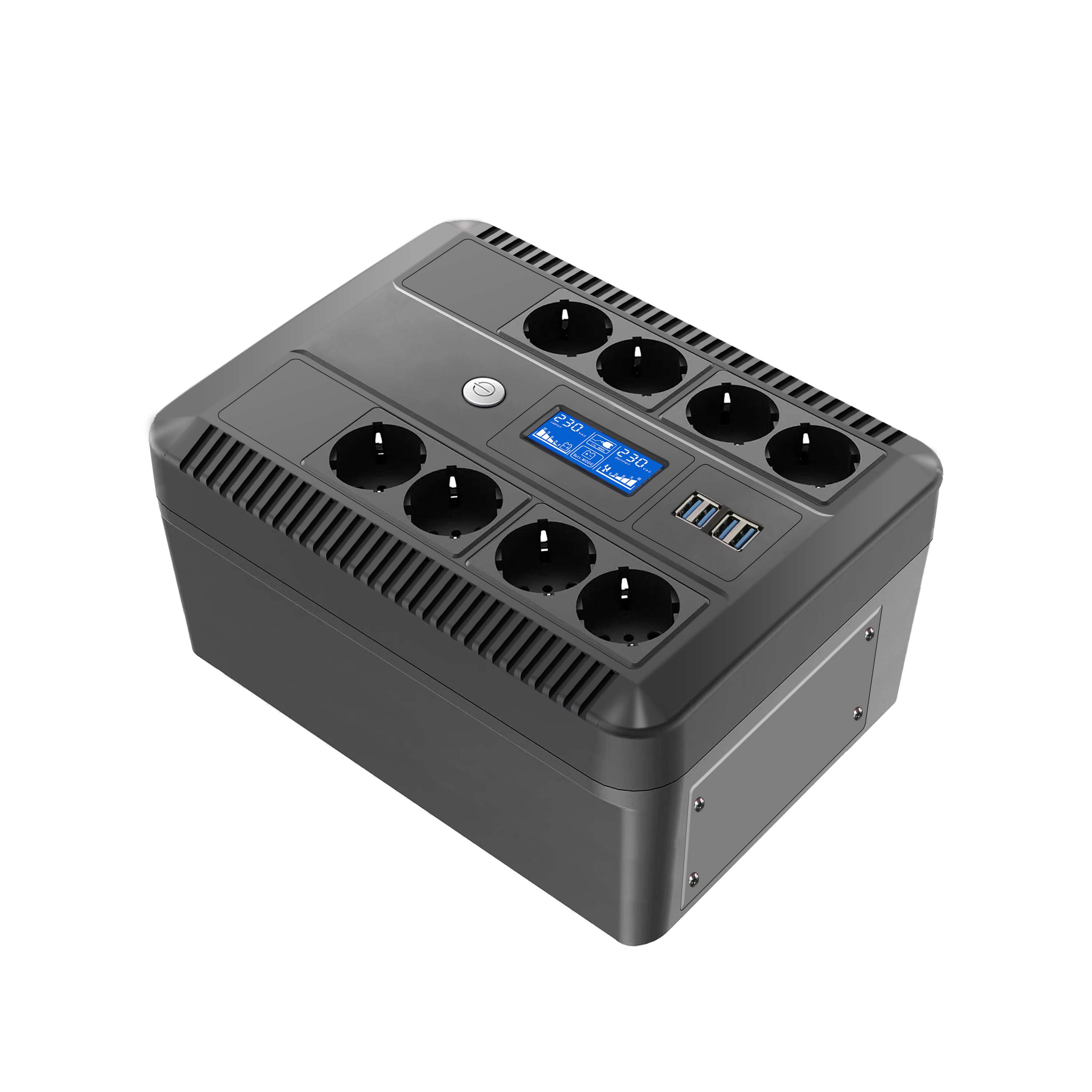

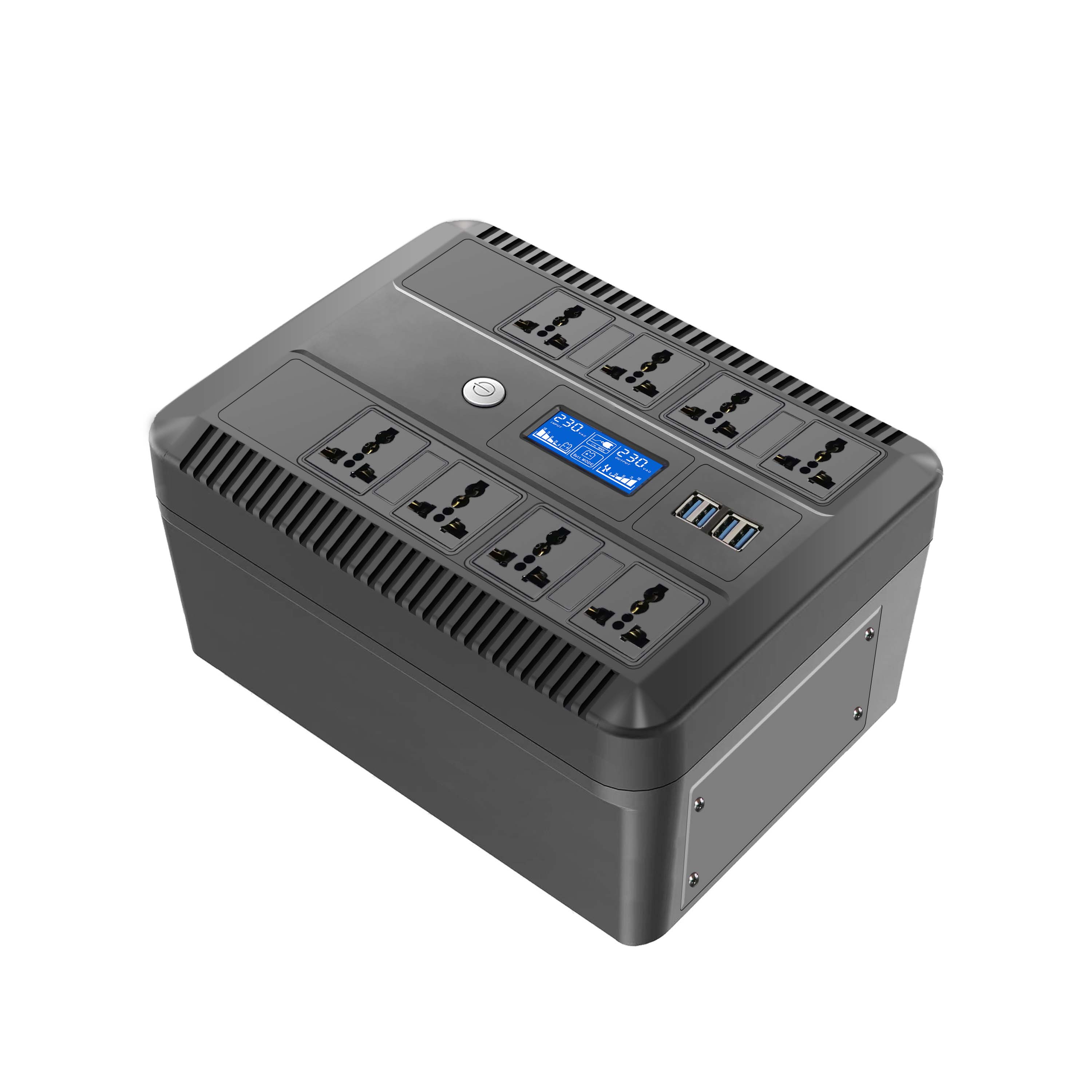

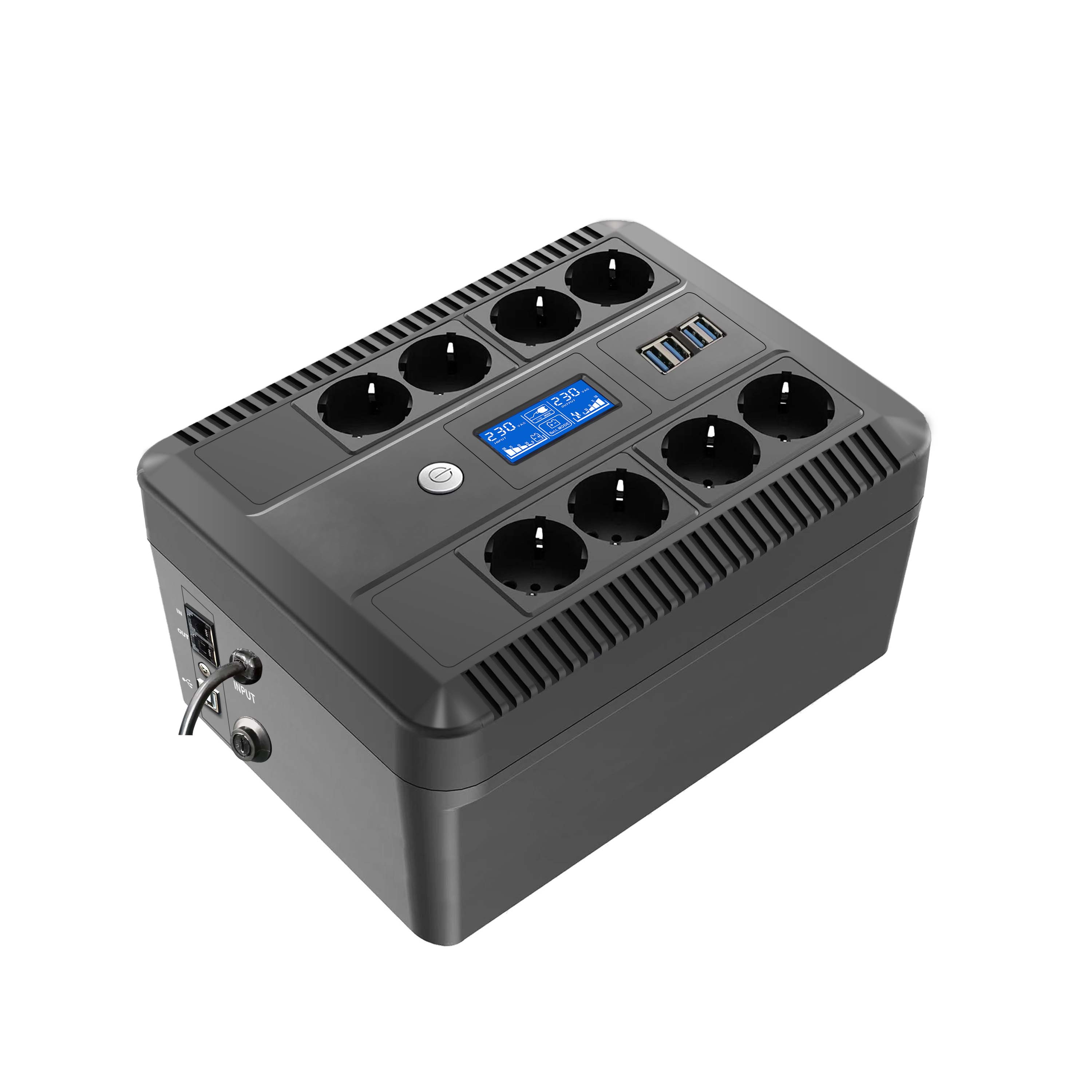

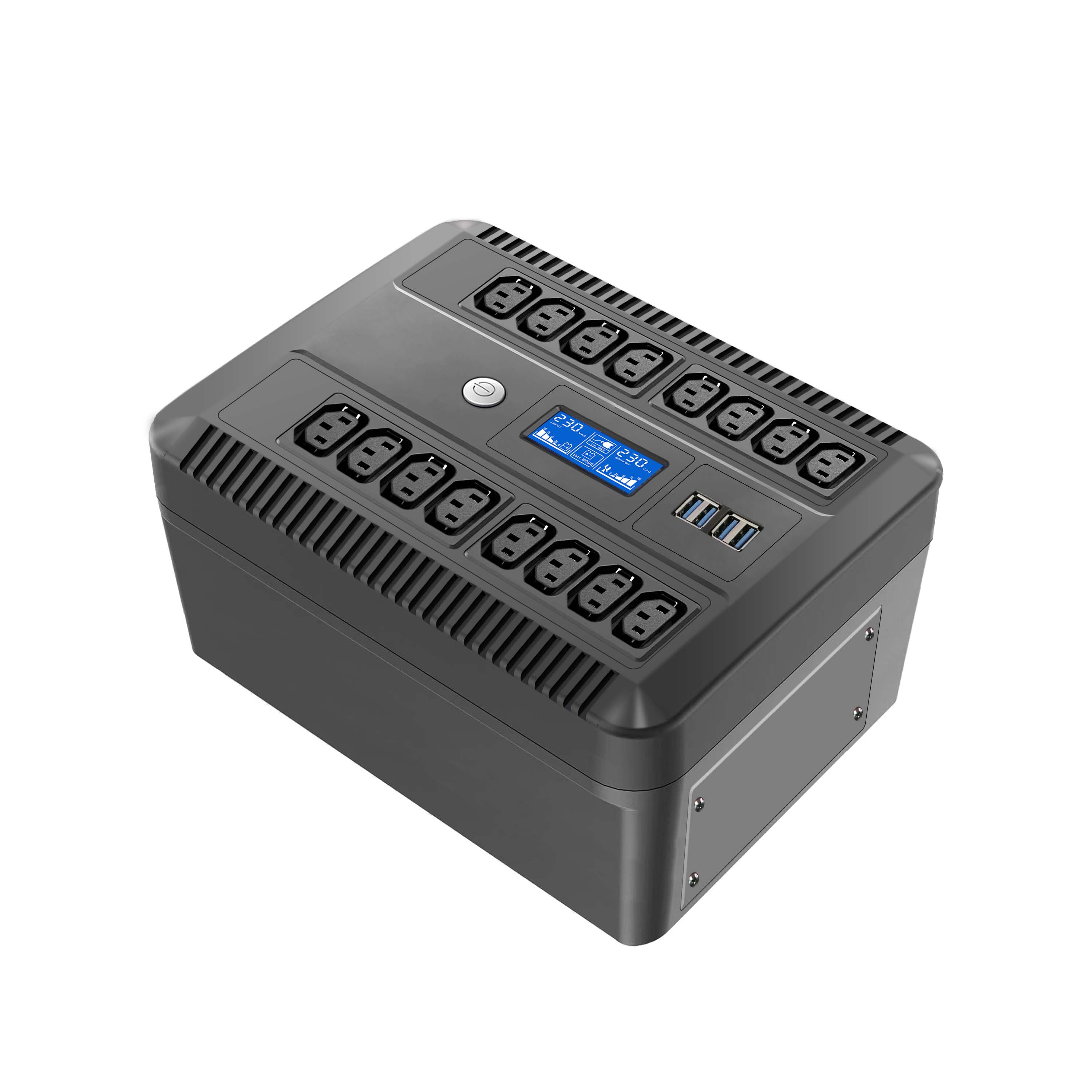

Picture Example:

Lead Time:

Quantity(pieces)	1 - 10000	>10000
Est. Time(days)	15	To be negotiated

Packing&Shipping
Fenice Power is compatible to provide exclusive package design for clients, which is for much better marketing strategy.
Inner box with 3 layer thick material and outer box with 5 layer thick corrugated box to protect the goods well.
Pallets is optional when delivery.

Main features:
1)Excellent microprocessor control optimizes reliability
2)Wide range of power input
3)Double boost and buck AVR for voltage stabilization
4)Auto restart while AC is recovering
5)Off mode charging function
6)Simulated sine wave
7)Cold start function
8)Compact size and economic design: it can be placed on a desk top or other convenient location
9)Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.
10)Display: LCD display providing status, load and battery information
11)Intelligent battery management

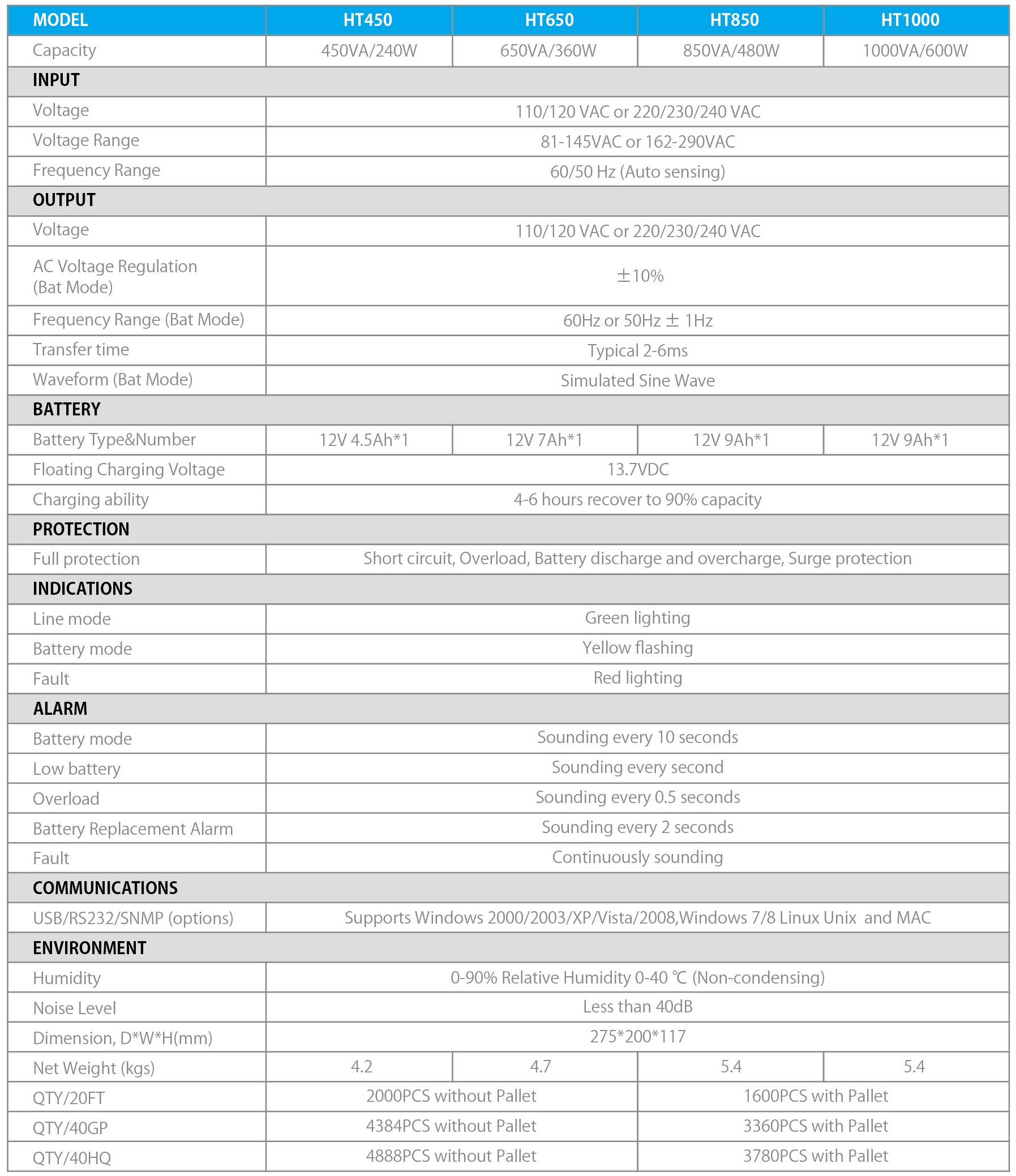

Technical Specification:

FAQ

What is a UPS?

An uninterruptible power supply, also uninterruptible power source, UPS or battery/flywheel backup, is an electrical apparatus that provides emergency power to a load when the input power source, typically the utility main, fails.

Why do I need a UPS?

Power disturbances and blackouts can be costly. Preserving Information, the availability of equipment critical to the business, maintaining fully occupied staff, reduction of cost over-runs, performing reliably and getting results on time are all key elements in any successful operation. A UPS will provide clean, stable power to critical application equipment throughout utility power disturbances and power failure.

How many types of UPS are there?

There are three typical types of UPS: OFF-LINE, ON-LINE, and LINE INTERACTIVE.

What is an " ON LINE UPS ?"

An Online UPS takes incoming power, converts it to DC, conditions it, and converts it back to AC. This means the UPS is Online since there is no delay to switch to battery. Use an online UPS for your critical applications, high availability servers, etc. The output of these online UPS systems are TRUE sine wave, and is usually better than power from the electric company.

What is a "LINE INTERACTIVE UPS ?"

An Online UPS takes incoming power, converts it to DC, conditions it, and converts it back to AC. This means the UPS is Online since there is no delay to switch to battery. Use an online UPS for your critical applications, high availability servers, etc. The output of these online UPS systems are TRUE sine wave, and is usually better than power from the electric company.

How to choose the right UPS?

1. Understand specifications of all UPS.

2. Consider the requirements of power quality.

3. Understand the current capacity of UPS and consider the future expansion.

4. Choose reputed brands and manufacturers.

5. Choose UPS based on your requirements.

What are the important items you should evaluate when buying a UPS?

1. UPS reliability and stability.

2. The excellent engineers and the ability of products creation.

3. High efficiency and low noise.

4. Suppliers' reputation and financial situation.

5. International safety approvals such as TUV,UL,CSA, and so on.

6. Plant certifications such as ISO9001, ISO9002, and so on.

Where I live seldom occurs power failure will I still need a UPS?

In fact, power failure is one of power problem. The other power problems such as high voltage, low voltage, and spike are the main problems. The purposes of UPS is to provide customers the overall power protection such as voltage regulation, surge protection, spike, and sags protection. It also provides extended back up time without any limitation.
