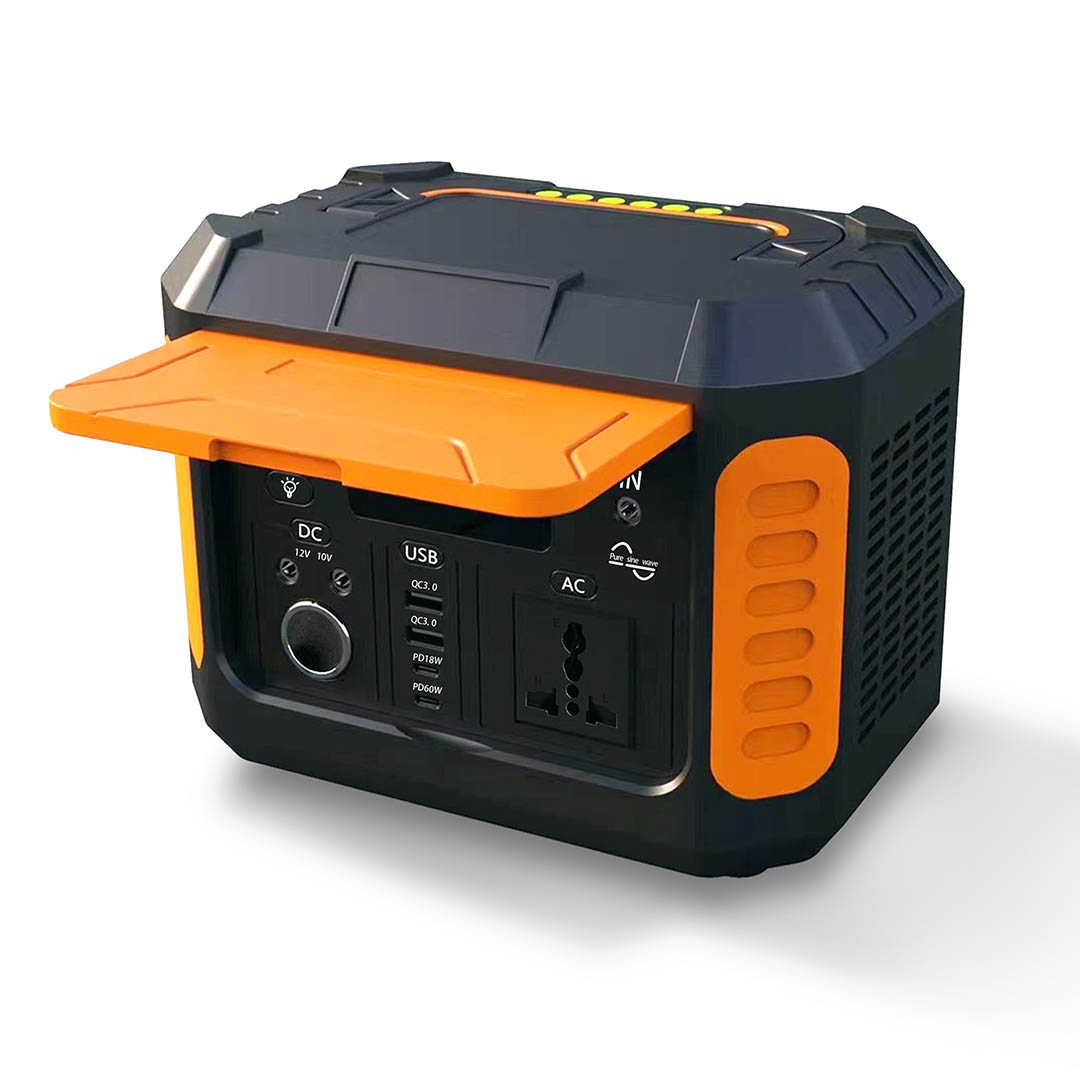

The system is composed of three-element Lithium 6S8P Battery Protection Board, DC charging circuit, MCU control circuit, inverter circuit and LCD screen. Inverter 500W pure sine wave AC220V/50Hz, DC 12V/10A, USB QC3.0, TYPE-C PD3.0. Applicable to camping, emergency communications, medical rescue, fire rescue and other fields.
Weight:5.05kg
Battery capacity:134400mAH(6S8P)
Power:497WH
Cycle life:Over 1000 times
Charging time:6-7hours

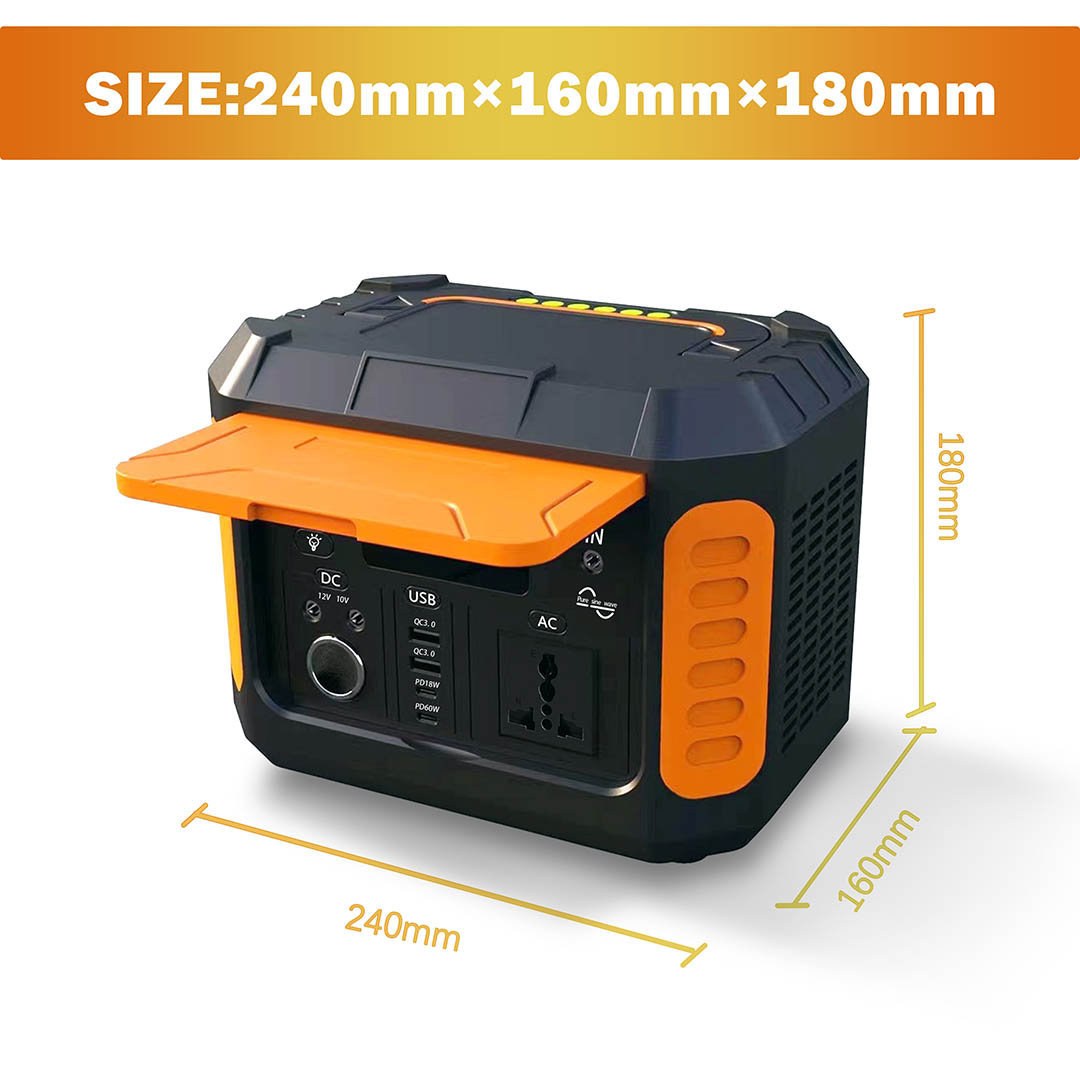

Dimension:240*160*180mm
Overview
Quick Details
Weight:5.05kg
Socket Standard:Micro USB
Output Interface:DC, Type C, Double Usb
Input Interface:DC
Function:Quick Charge Support
Private Mold:NO
Type:Power Staion
Battery Type:18650 Lithium Battery
Place of Origin:Guangdong, China
Brand Name:OEM
Model Number:PPS500A
Product name:PPS500A
Battery capacity:134400mAH(6S8P)
Power:497WH
Cycle life:Over 1000 times
Charging time:6-7hours
DC input:PD60W
Display:LCD
Wave Form:Pure sine wave
Warranty:1 Year
Dimension:240*160*180mm
Protection:Over-discharging, Short Circuit Protection, Over-charging
Supply Ability
Supply Ability 50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details one pcs put in one poly bag, together with power line put into one color box .Lead time:
|
Quantity(pieces) |
1 - 50 |
>50 |
|
Est. time (days) |
7 |
To be negotiated |
Product Description
Product Name PPS500A
Battery Power 497WH
Capacity 2800MAH * 6 series 8 parallel/134400mAH
AC Peak Value 1000W peak duration < 50ms

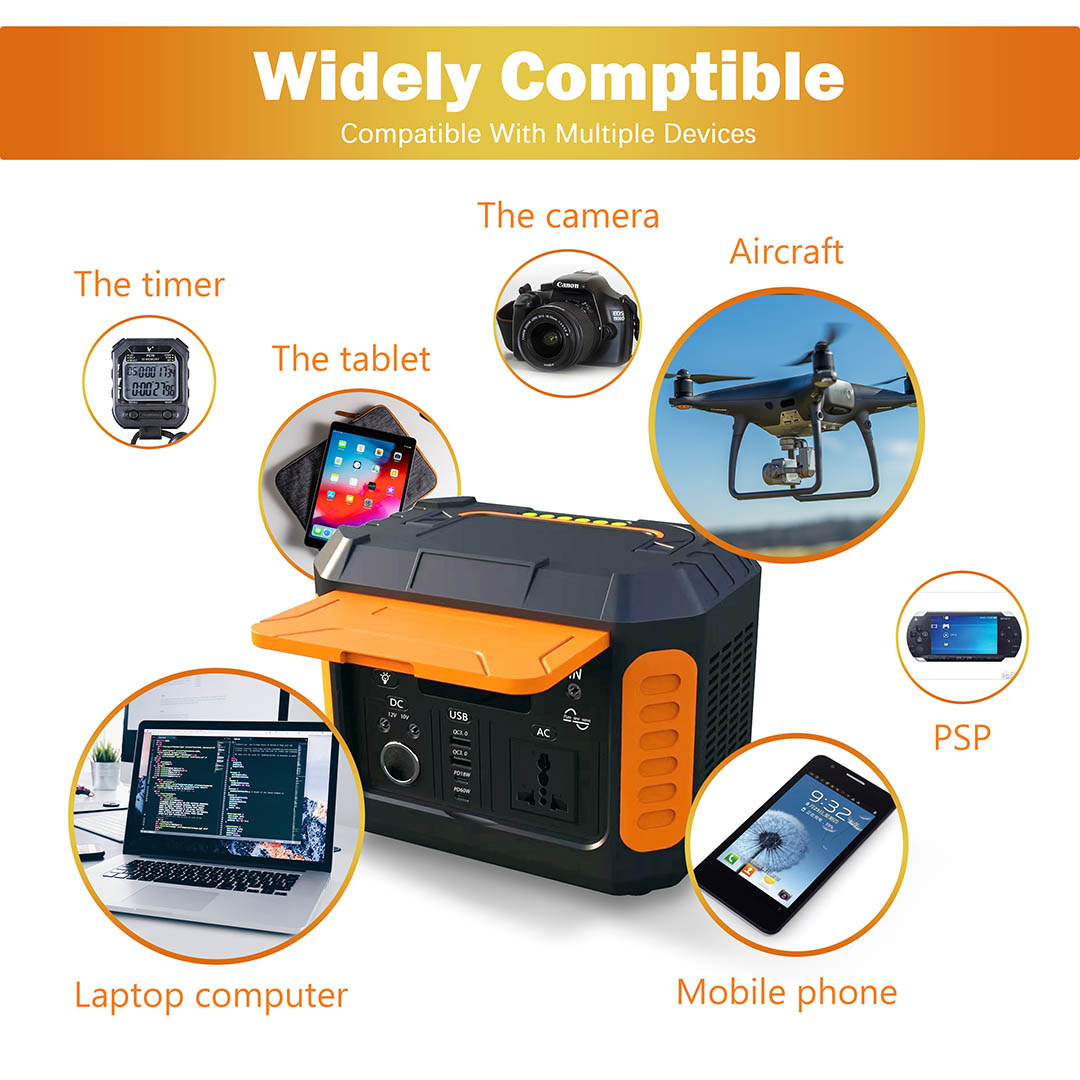

Product Scenarios
Product Usage

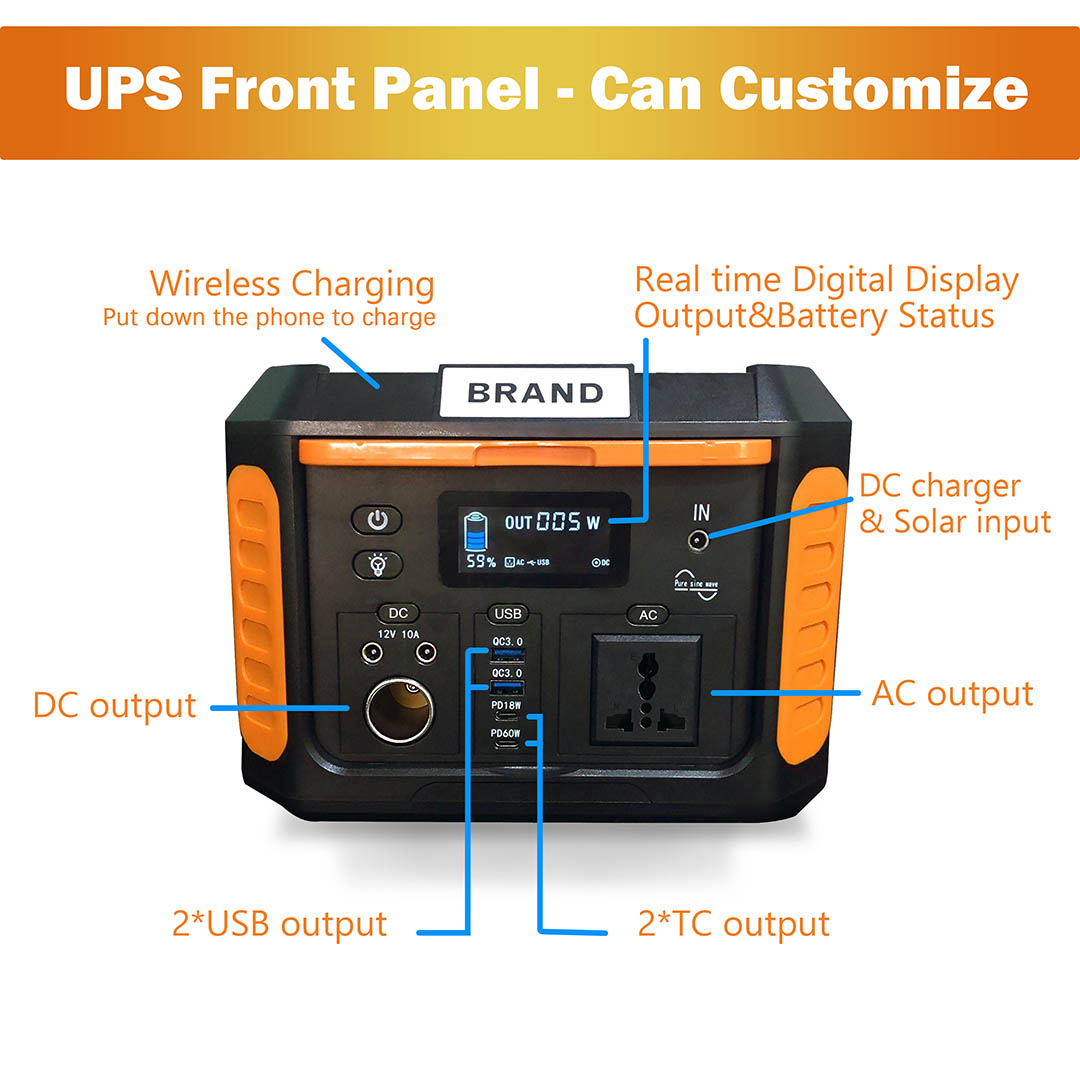

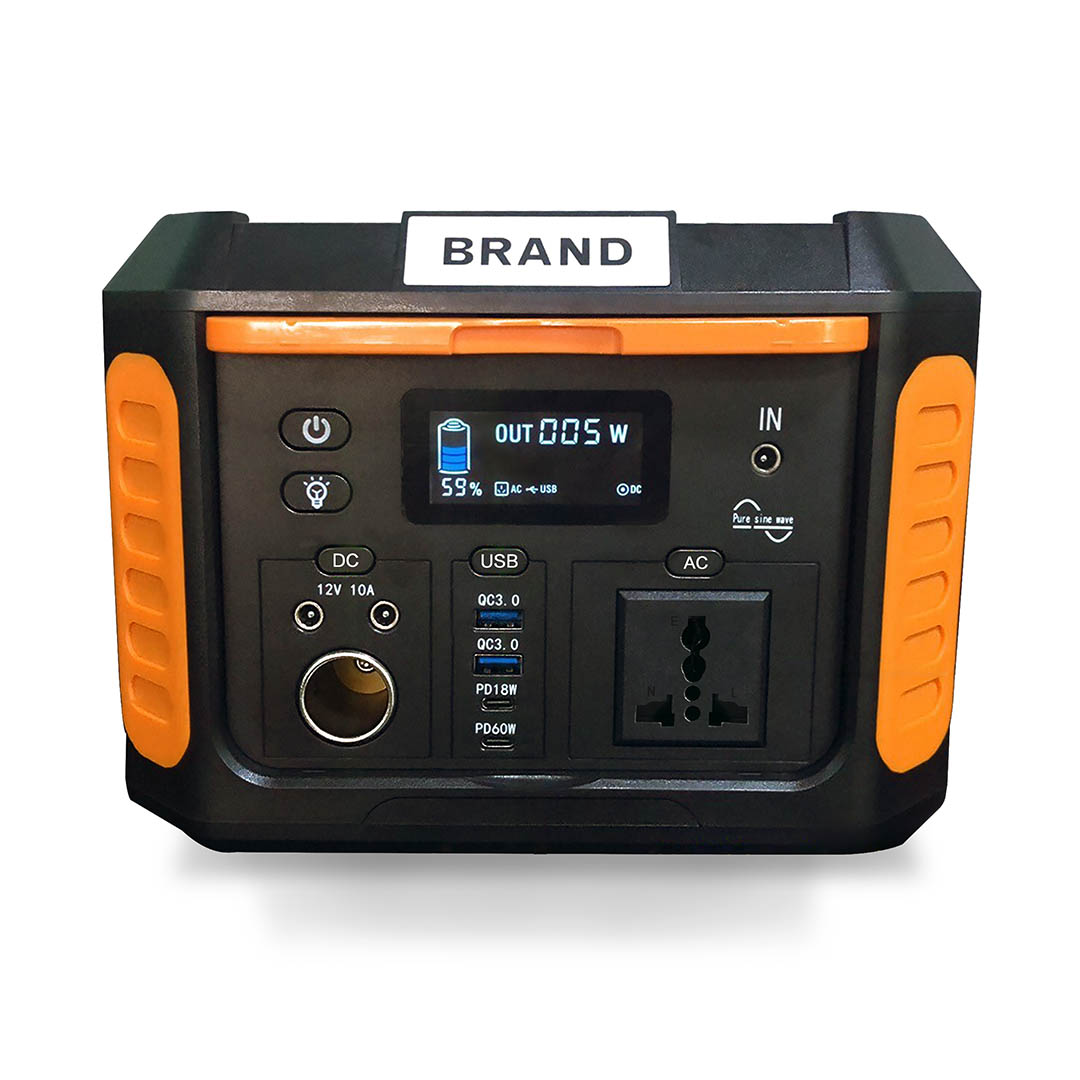

1. keystroke instructions

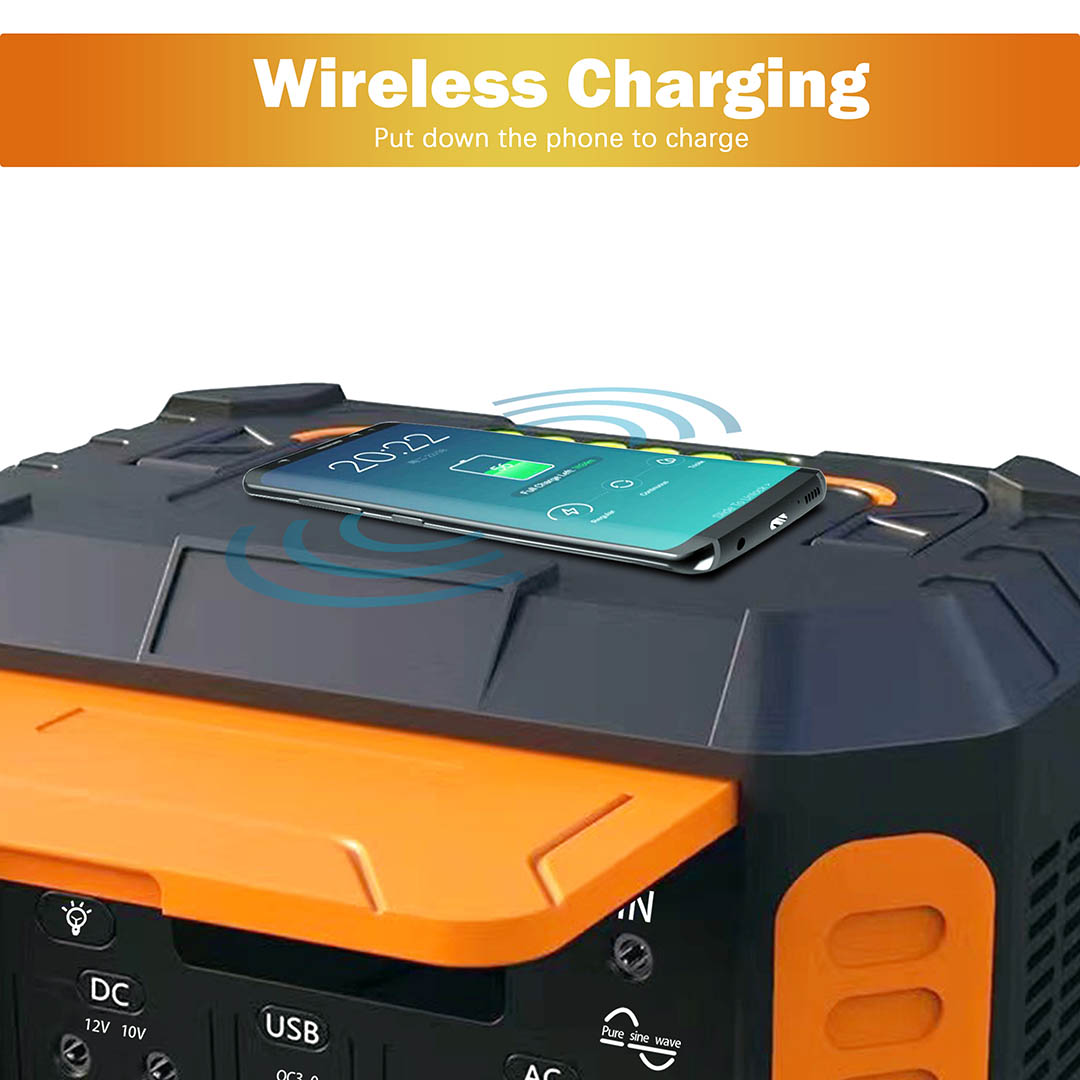

Total switch length by 2 seconds to turn on the system and wireless charging function, long by 2 seconds to turn off the output of the whole machine.
LED light switch length press 2 seconds to turn on or off the LED light.
DC switch length by 2 seconds to open or close DC5521 and vehicle cigarette lighter output.
USB1, USB2, TYPE-C1 output can be turned on or off by pressing the USB switch for 2 seconds.
AC switch length press 2 seconds to turn the inverter output on or off.
2. three USB sockets QC3.0 output
2.1 switch on output separately.
2.2 turn on switch display shows USB symbol, which means turn on output.
2.3 TYPE-C2 PD60W bi-directional plug-in load will automatically discharge.
2.4 open DC output and car charge output button, DC12V open output, display DC symbol.
2.5 turn on LED lights, turn on LED lights.
2.6 please turn off the power switch immediately when the operation is abnormal and check whether the using equipment is abnormal.
2.7 after use, unplug the device and turn off the power switch.
2.8 turn off the unit output when the battery voltage is close to the protection voltage or when the low voltage protection is reached.
3. an AC outlet 220V500W output
3.1 turn on AC switch, AC start output.
3.2 an AC port output is normal, the display shows the AC symbol.
3.3 an AC port output anomaly, AC switch to be closed.
3.4 check the rated power of the used products to ensure that they are not used beyond 500W of this AC port.
3.5 connect the product and plug it into the AC port to recharge.
3.6 turn off the power switch immediately when abnormal operation occurs, and check whether the use of digital products is abnormal.
3.7 after use, unplug the product and turn off the power switch.
4. battery low voltage protection
4.1 when the product voltage is insufficient, LCD display battery space, and turn off all output, please charge the product in time.
1pcs per carton

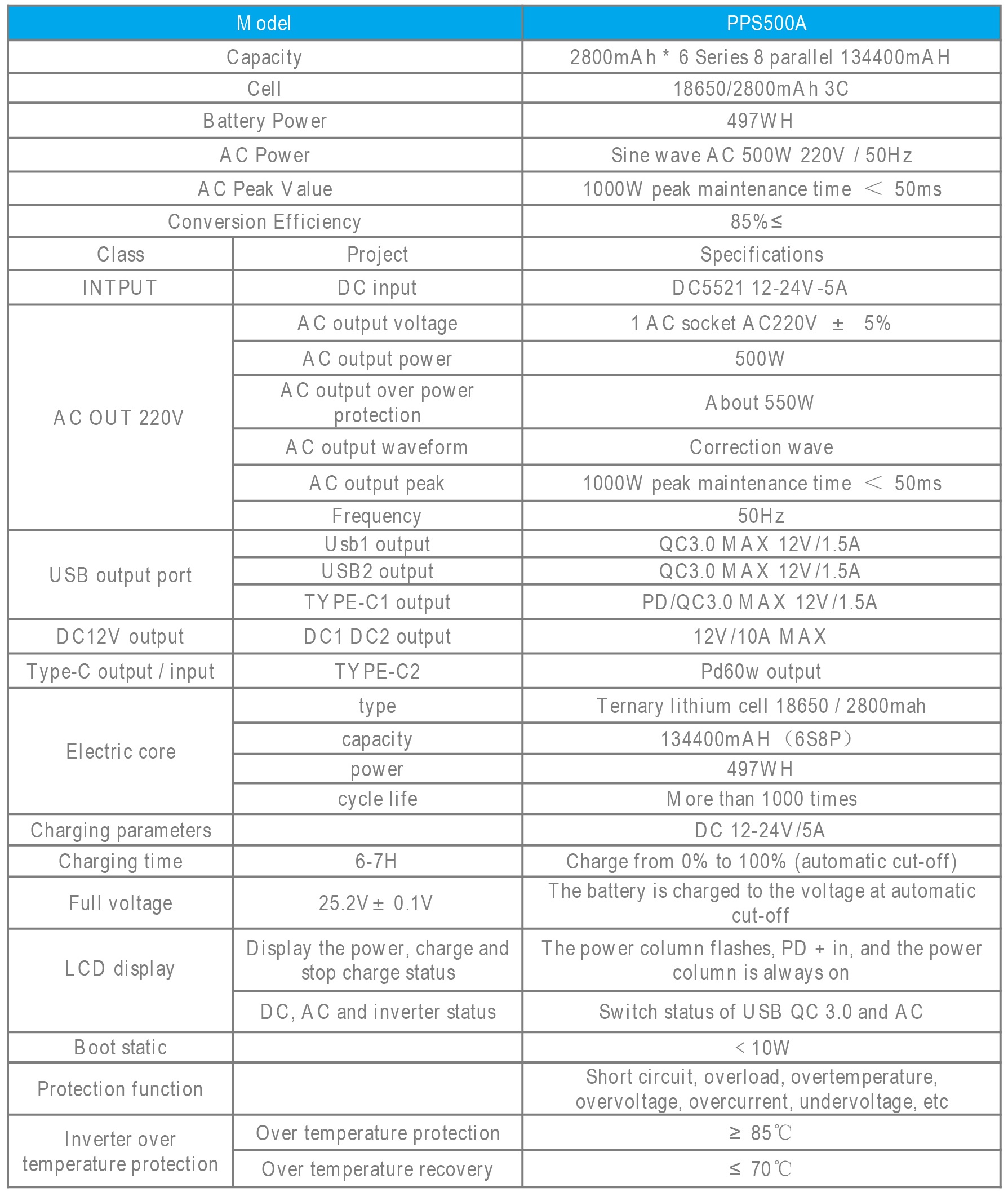

Specifications
