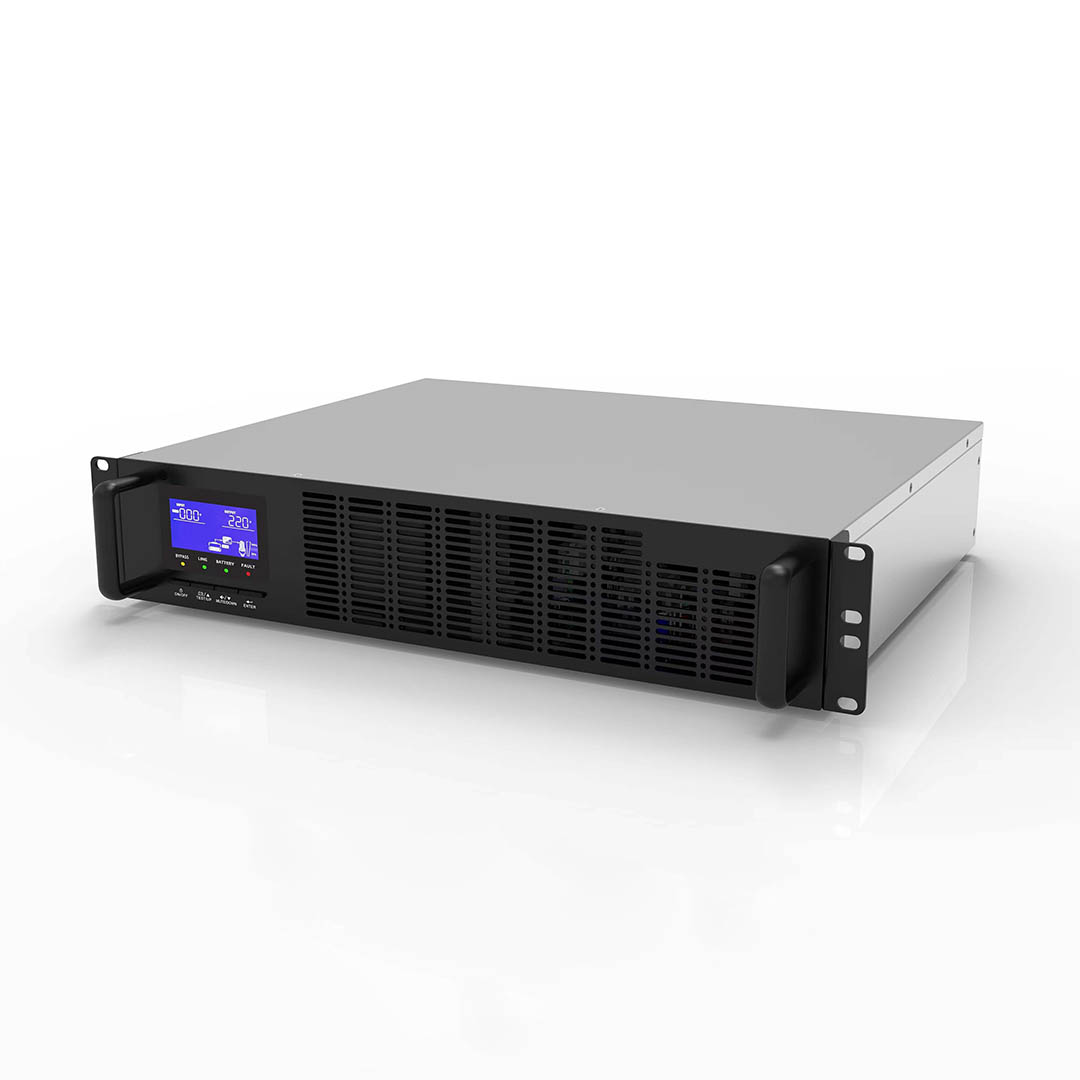

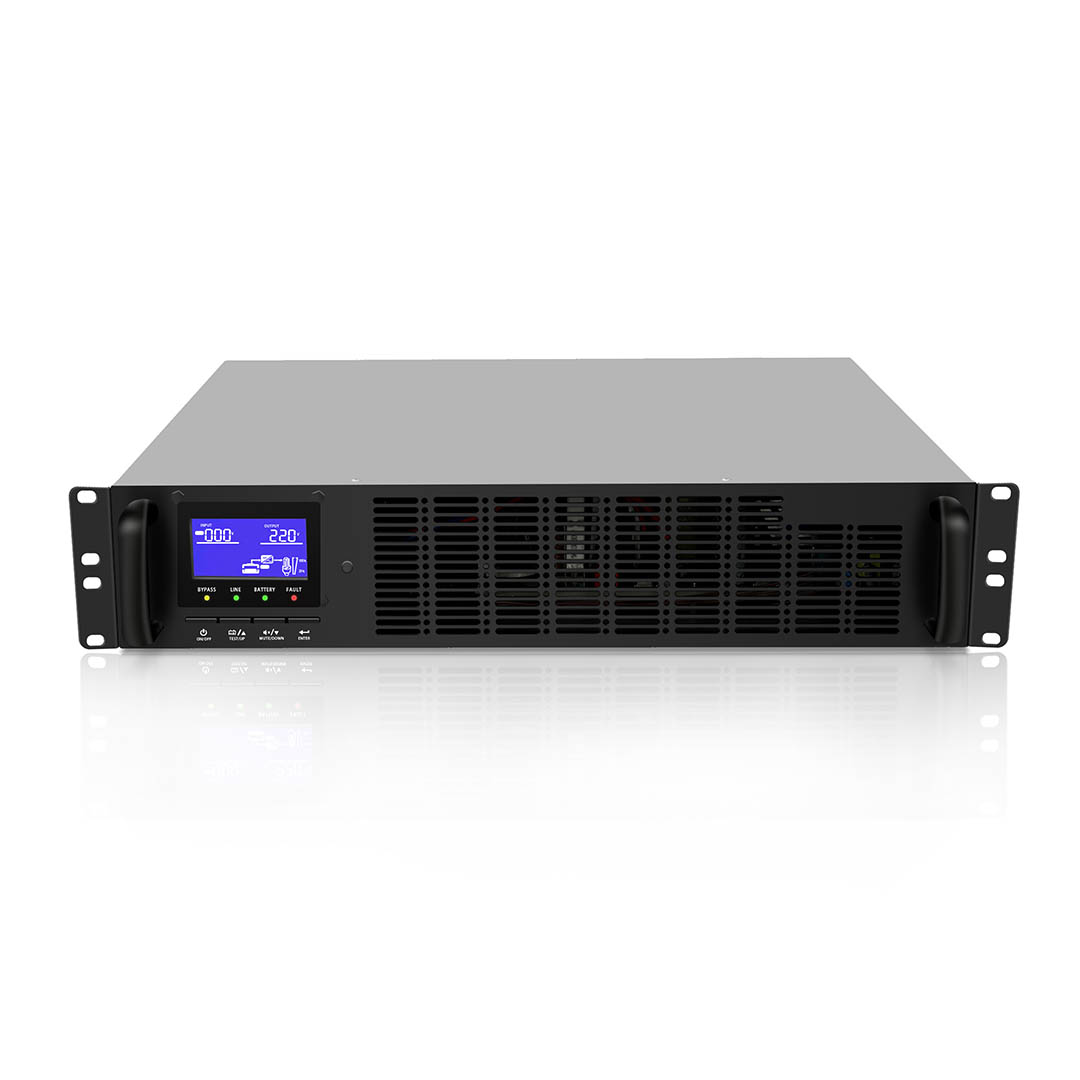

1kva 2kva 3kva 6kva 10kva rack online pure sine wave single phase ups
Model Number:PX6-10KRL
Warranty:1year,12months
Capacity:1000va 800w
Transfer time:0
Weight:10.9KGS

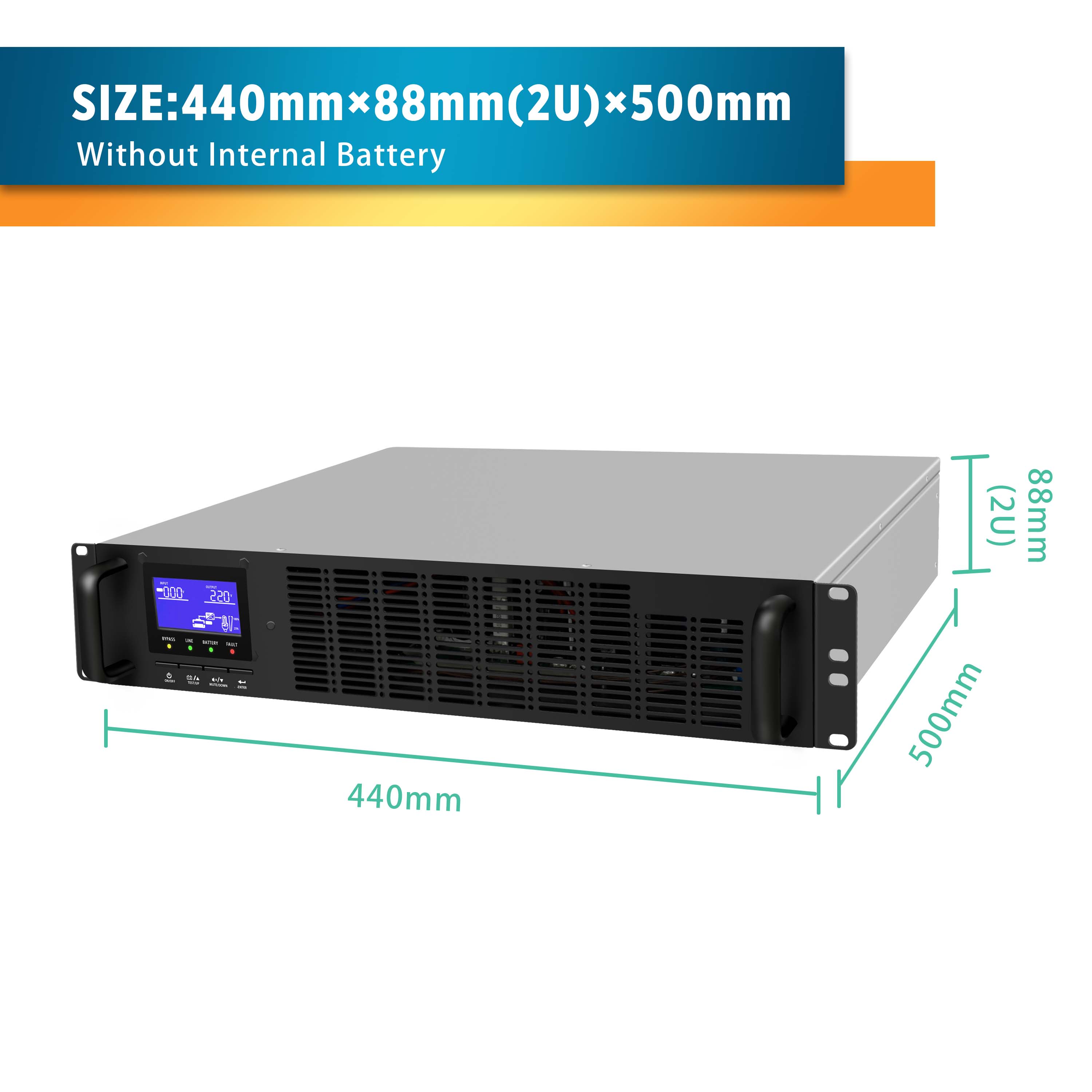

SIZE W H L (mm) 440*88(2U)*500
Overview
Quick Details
|
Warranty:1year,12months Place of Origin:shenzhen, china Brand Name:OEM Model Number:PX6-10KRL Phase:Single Phase Protection:Short Circuit Weight:10.9KGS Type:On-line Application:all appliances less than 800w |
Product name:Online ups Capacity:1000va 800w Battery Type:lead-acid battery Waveform:Pure Sine Wave On-line Transfer time:0 Color:Black Display:LCD Keywords:Rack type Power factor:0.8 |
Supply Ability
Supply Ability 60000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs in one carton
SIZE W H L (mm) 440*88(2U)*500
UPS with 7ah 2pcs
NET weight 11KG
Gross weight 12KGS
UPS with 9ah 2pcs about 12KGS
Gross weight 13KGS
Carton Size 530*450*185mm
Carton CBM 0.044CBM
Port shenzhen
Picture Example: package-img
Lead Time:
|
Quantity(pieces) |
1 - 500 |
501 - 1000 |
>1000 |
|
Est. Time(days) |
30 |
32 |
To be negotiated |
♦ Double conversion online UPS
♦ High performance DSP based full digital controlled,pure sine wave output
♦ Having frequency converter operating mode
♦ Wide input voltage range,work well with different power quality
♦ Compatible with most generators set
♦ Embedded anti-input power factor corrector,avoid reactive power loss,saving power for user
♦ Having CEO mode. Enable best balance between energy saving and power protection
♦ Good loading adaptability,work well with laser printer,Ultrasonic cleaner
♦ Make with strong glass fiber base double side PCB(FR4),avoid dry solder,strong anti-vibration / anti-humidity / anti-dust capability
♦ Small profile,save installation space for user
♦ Accept deep customer-oriented,perfect match customer application requirement
♦ Attractive performance-cost ratio
Product Description
Specifications
Model item
1K(R)
1K(R)L
2K (R)
2K (R)L
3K (R)
3K(R)L
6K
6K(R)L
10K
10K(R)L
Rated power
1000VA/900W
2000VA/1800W
3000VA/2700W
6kVA/5.4kW
10kVA/9kW
AC Input
Input system
Single phase (L/N+PE)
Nominal voltage
HV: 208/220/230/240Vac
LV:100/110/120/127Vac
Frequency
50/60Hz
Voltage range
HV: 90~300VAC±5VAC
LV: 60-145Vac±3VAC
Frequency range
(40~70)±0.5Hz
Input power factor
>0.99
Bypass Voltage Range
HV: 115~285VAC×(1±3%)
LV: 80~140VAC×(1±3%)
Battery
Input
Nominal Voltage
24V
36V
48V
72V
72V
96V
192V
192V
192V/240V
Battery Capacity & Quantity
12V/9AH
x 2pcs
External
12V/9AH
x 4pcs
External
12V/9AH
x 6pcs
External
12V/9AH x 16pcs
External
12V/9AH
x16/20pcs
External
Backup Time
Half loaded≥8minutes,
Full loaded ≥3minutes(standard)
Half loaded≥6minutes,
Full loaded ≥3minutes(standard)
Battery charger time
Charger to 90% battery capacity in 5 hours(standard) Dependent on the capacity of external batteries (long backup time)
AC Output
Output wiring system
Single phase (L/N+PE)
Inverter Mode
Output voltage
HV:208/220/230/240Vac±2%
LV:100/110/120/127Vac±2%
Waveform
Sine Wave
Harmonic Distortion
THD<2% (linear load)
THD<7% (nonlinear load)
Output frequency
50/60±4Hz (Sync mode)
50/60Hz±1% (Fix Freq. mode)
Overload capability
105～125%≥ 60s,126～150%≥30s The recover point is 70%
Transfer time
Battery <-> Line Mode :0ms
Efficiency
Line Mode
HV:86%
LV:86%
HV:88%
LV:86%
HV:89%
LV:87%
HV:92%
LV:88%
HV:93%
LV:89%
Battery Mode
HV&LV:85%
HV&LV:86%
HV&LV:87%
Communications

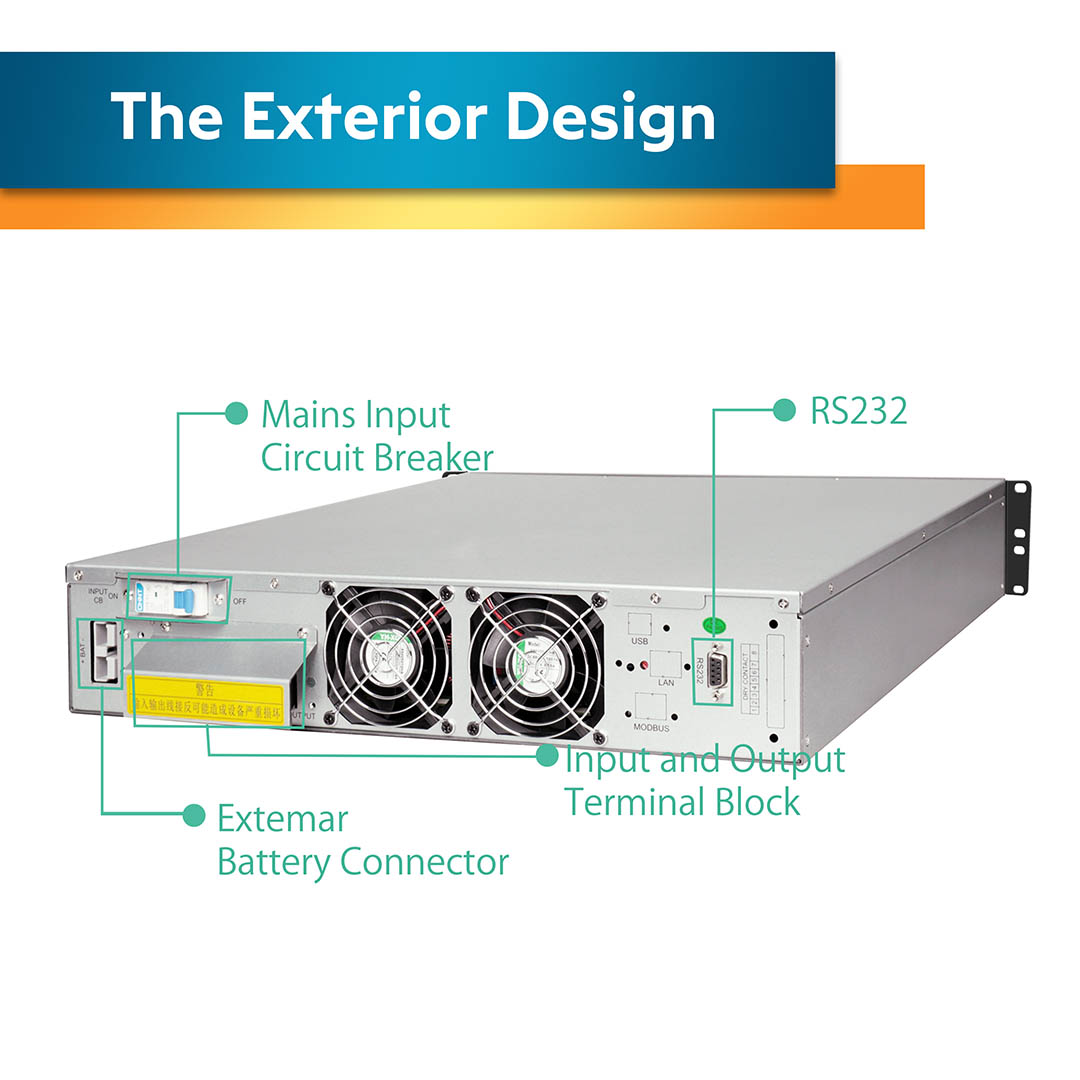

RS232 RS485(optional), Dry contact(optional), Network Card(Option)
Alarm Function
AC/DC input under abnormal, overload condition and Inverter problems
Protection Function
AC input or output above or below the range of voltage, overload, over temperature and short circuit protection
Noise
<50dB
<55dB
