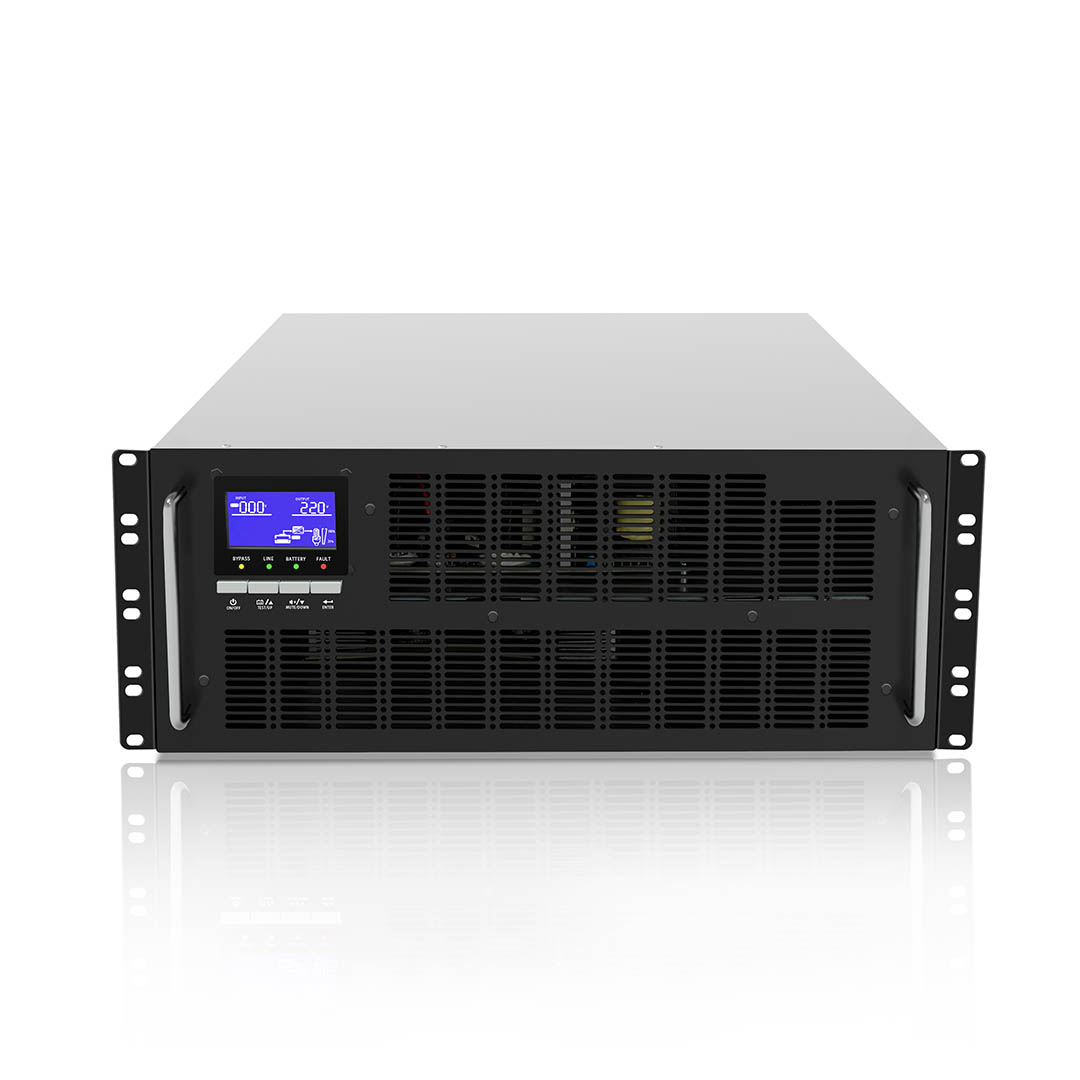

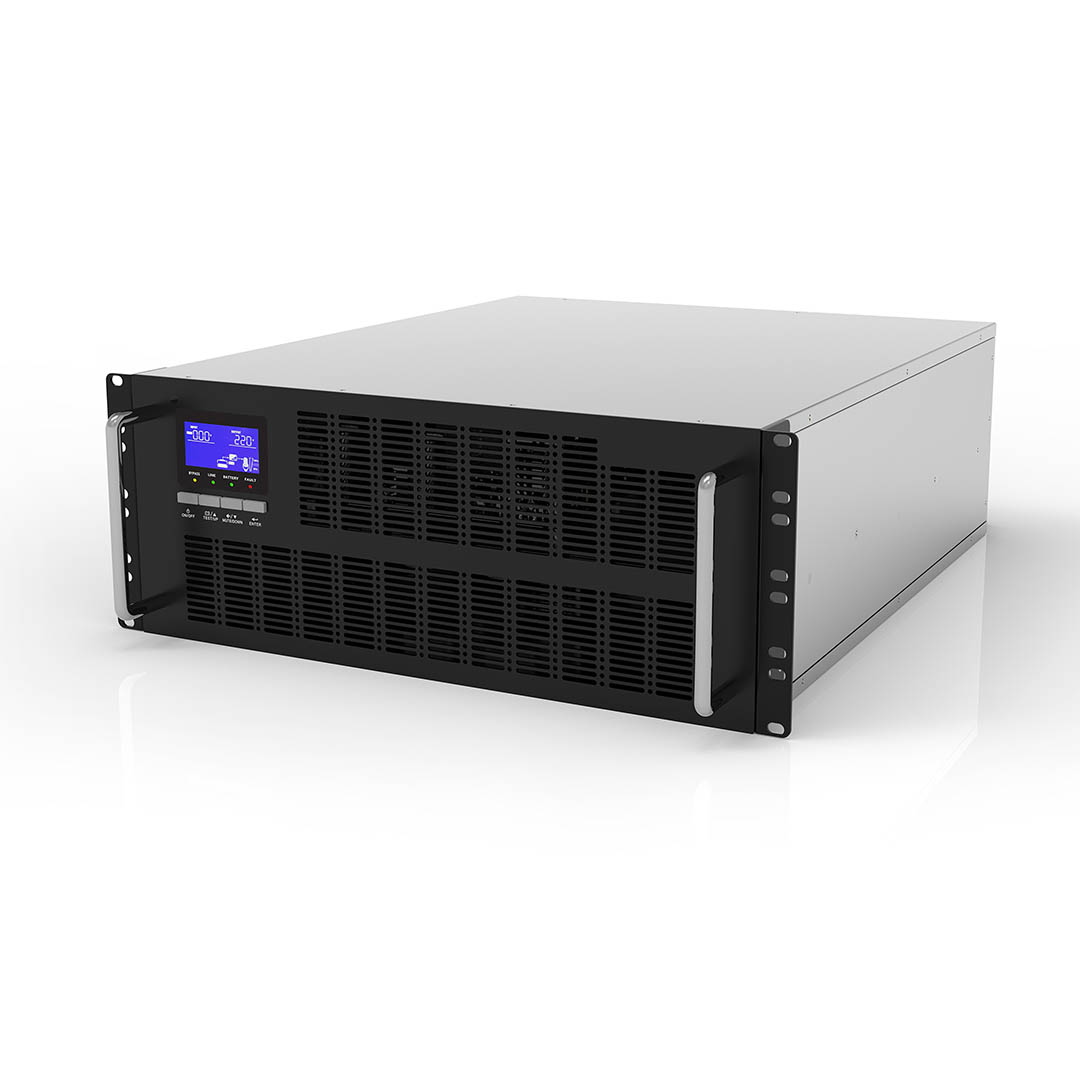

On-line UPS PX15-20KRL-3P1-Online UPS-Fenice Power Co., Ltd.

Overview

Quick Details

Warranty:1year,12months

Place of Origin:shenzhen, china

Brand Name:OEM

Model Number:PX15-20KRL-3P1

Phase:Single Phase

Protection:Short Circuit

Weight:25.6-26.1KGS

Type:On-line

Application:all appliances less than 800w

Product name:Online ups

Capacity:1000va 800w

Battery Type:lead-acid battery

Waveform:Pure Sine Wave On-line

Transfer time:0

Color:Black

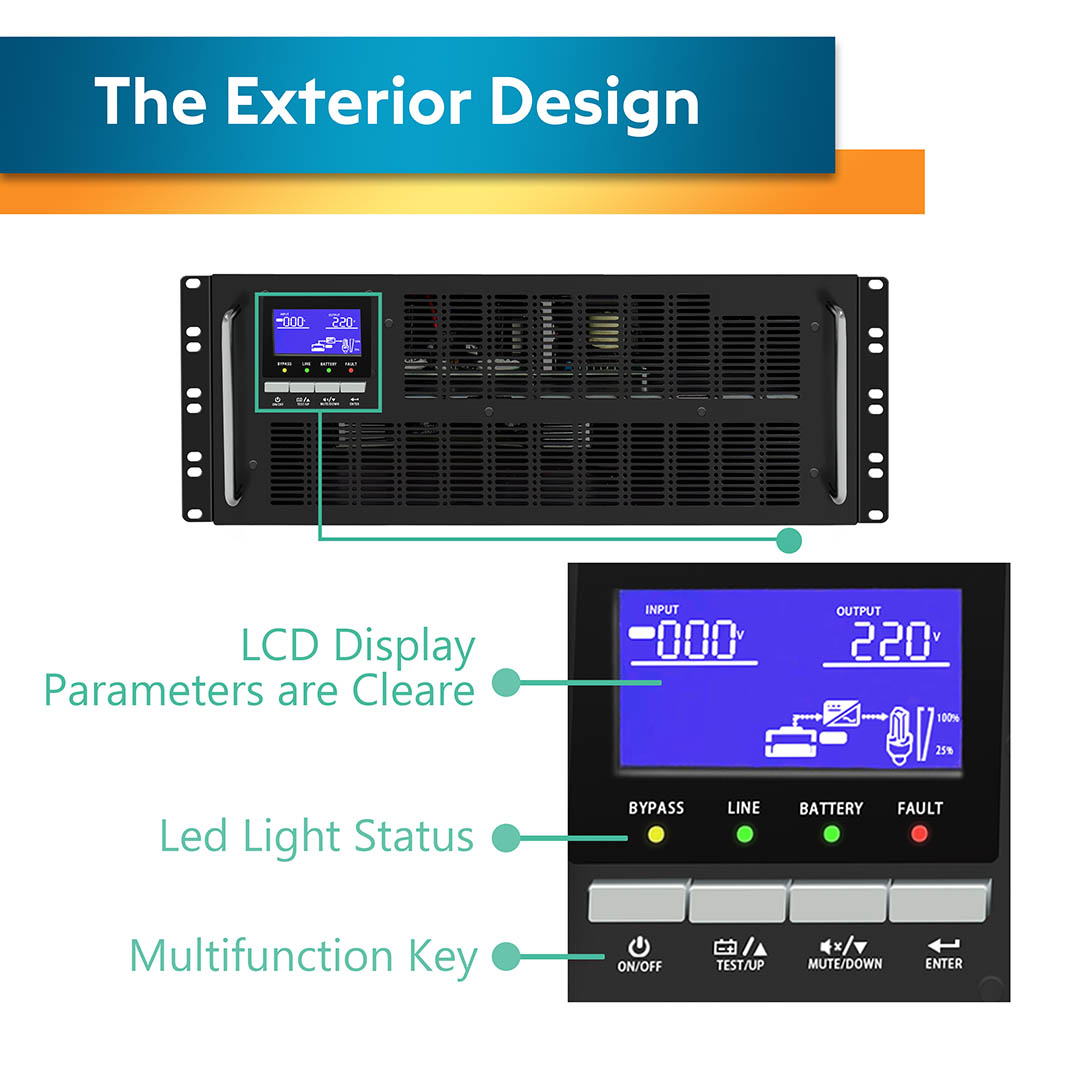

Display:LCD

Keywords:Rack type

Power factor:0.8

Supply Ability

Supply Ability 60000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

1pcs in one carton

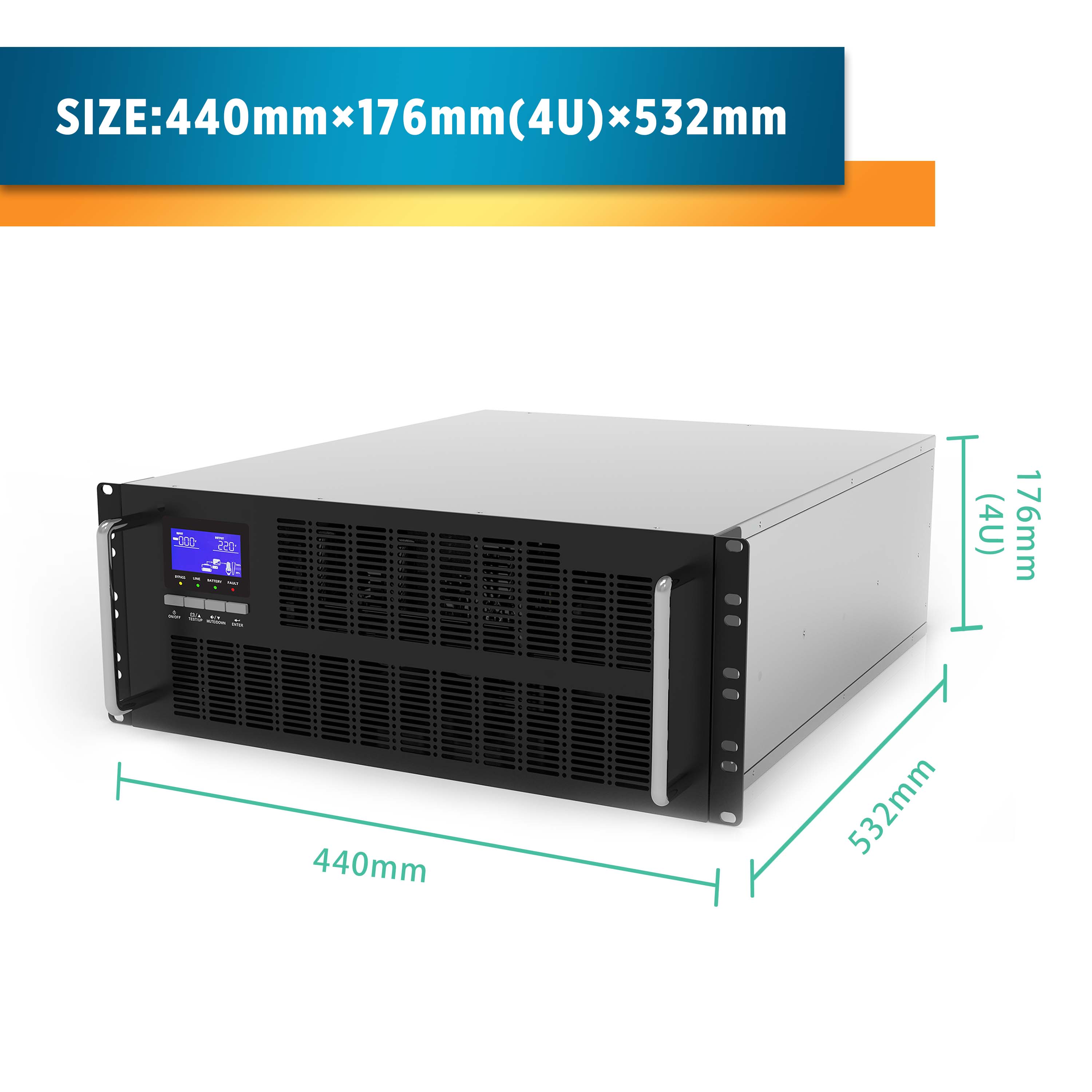

SIZE W H L (mm) 440*176(4U)*532

Gross weight 25.6-26.1KGS

Port shenzhen

Picture Example: package-img

Lead Time:

Quantity(pieces)	1 - 500	501 - 1000	>1000
Est. Time(days)	30	32	To be negotiated

Main features

♦ Double conversion online UPS

♦ High performance DSP based full digital controlled,pure sine wave output

♦ Having frequency converter operating mode

♦ Wide input voltage range,work well with different power quality

♦ Compatible with most generators set

♦ Embedded anti-input power factor corrector,avoid reactive power loss,saving power for user

♦ Having CEO mode. Enable best balance between energy saving and power protection

♦ Good loading adaptability,work well with laser printer,Ultrasonic cleaner

♦ Make with strong glass fiber base double side PCB(FR4),avoid dry solder,strong anti-vibration / anti-humidity / anti-dust capability

♦ Small profile,save installation space for user

♦ Accept deep customer-oriented,perfect match customer application requirement

♦ Attractive performance-cost ratio

Product Description

Specifications

Item Model		10K-3P1	10KL-3P1	15K-3P1	15KL-3P1		20K-3P1	20KL-3P1
Rated power		10kVA/9KW		15kVA/13.5KW			20kVA/18KW
AC Input	Input system	3phases (L1, L2, L3, N, PE) or 1phases (L, N, PE)
	Nominal voltage	208/220/230/240Vac
	Frequency	50Hz/60HZ
	Voltage range	L-N : 90~300VAC±5VAC L-L: 156~520VAC ±5VAC
	Frequency range	(40~70)±0.5Hz
	Input power factor	>0.99
	Bypass Voltage Range	115~285VAC×(1±3%)
Battery Input	Nominal Voltage	192V/240V (Selectable)
	Battery Capacity & Quantity	12V/7AH x 16pcs	External	12V/7AH x 32pcs	External		12V/7AH x 32pcs		External
	Backup Time	Standard Model with internal battery: half load ≥6min, full load ≥ 1.5min Long backup time Model: determined by external battery
	Battery charger Time	Standard Model with internal battery ： 5 hours to 90% Long backup time Model: determined by external battery
AC Output	Output wiring system	1 phase 3 wire (L ,N, G)
	Inverter Mode Output voltage	220/230/240Vac±2%
	Waveform	Sine wave
	Output frequency	50/60±4Hz (Sync mode) 50/60Hz±1% (Fix Freq. mode)
	Harmonic Distortion	THD <2%（Linear Load） THD <7%（non-linear Load）
	Overload capability	Line mode / Battery Mode with 240VDC 105～125% 10mins，126～150% 1min , >150% 100ms Battery Mode with 192VDC105～125% 1s，>126% 100ms
	Transfer time	Line mode <-> Battery Mode 0ms
Efficiency	Line Mode	93%		93%			94%
	Battery Mode	92%		92%			93%

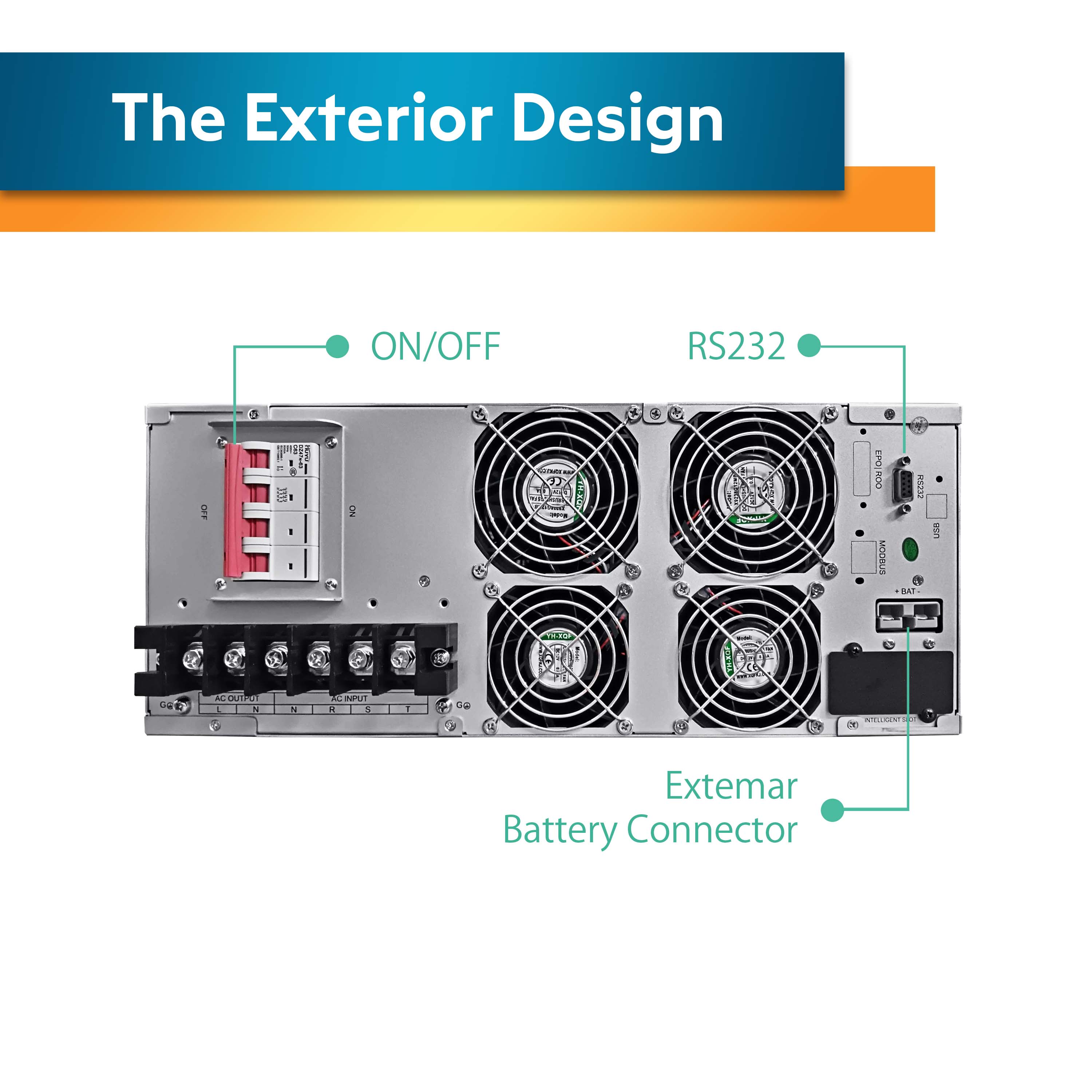

Communications Port		RS232 RS485(optional), Dry contact(optional), Network Card(Option)
Noise		<50dB				<55dB
Protection Function		AC input or output above or below the range of voltage, overload, over temperature and short circuit protection
