Overview

Essential details

Warranty:1year, 12 months
Place of Origin:Guangdong, China
Brand Name:OEM/ODM
Model Number:PX6KL&12BAT
Phase:Single Phase
Protection:Short Circuit
Type:On-line
Application:Security / Monitoring / Alarm

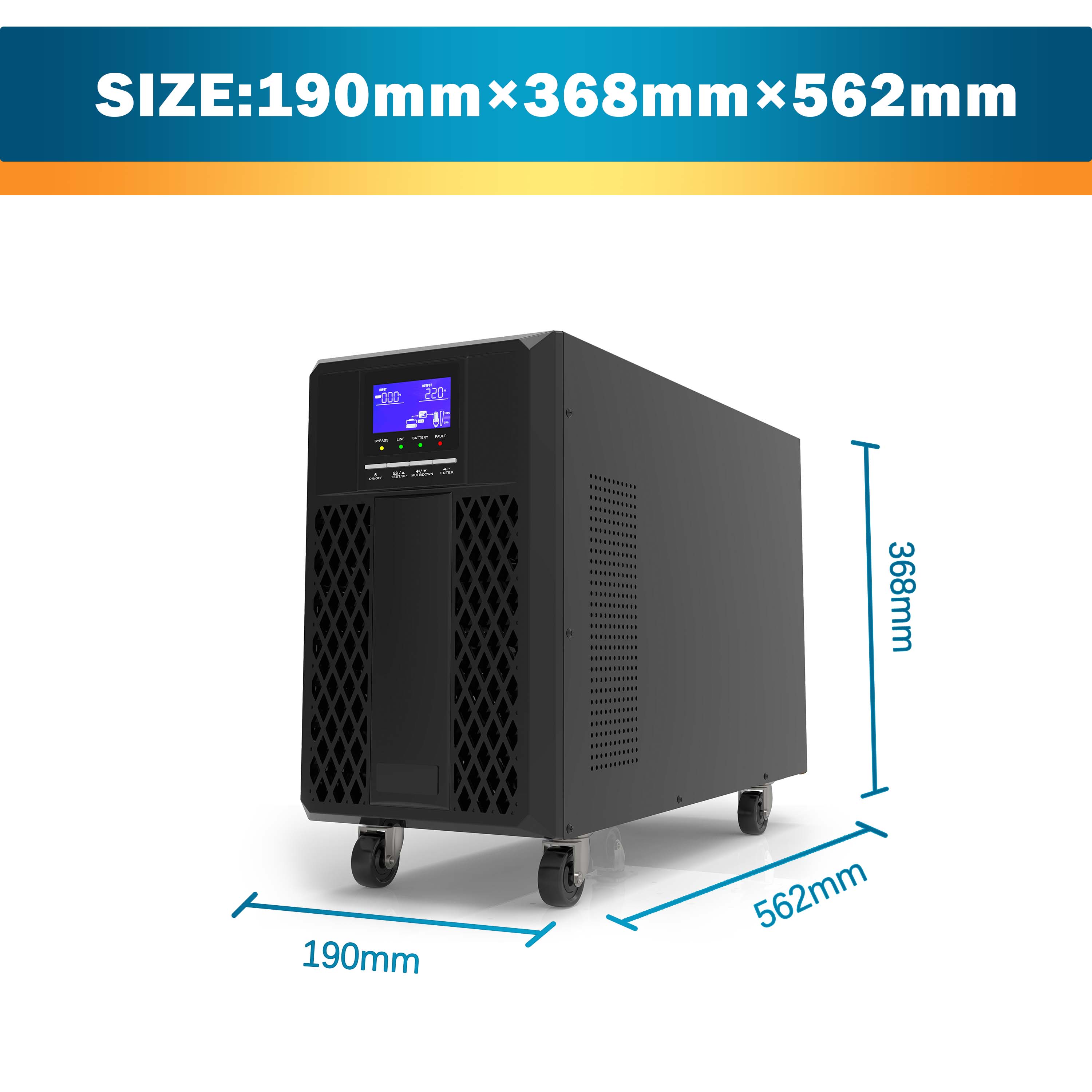

Dimensions(mm):562*190*368

Capacity:3000VA/2400W

Battery Type:Sealed Lead Acid Battery

Wave Form:Pure Sinewave
Color:Black
Certification:CE ROHS
Transfer Time:0ms
Frequency:40~70Hz
Appplication:Home Backup Power

Supply Ability
Supply Ability 50000 Piece/Pieces per Month

Packaging & delivery
Port shenzhen
Lead time:

Quantity(pieces)	1 - 2000	>2000
Est. time (days)	20	To be negotiated

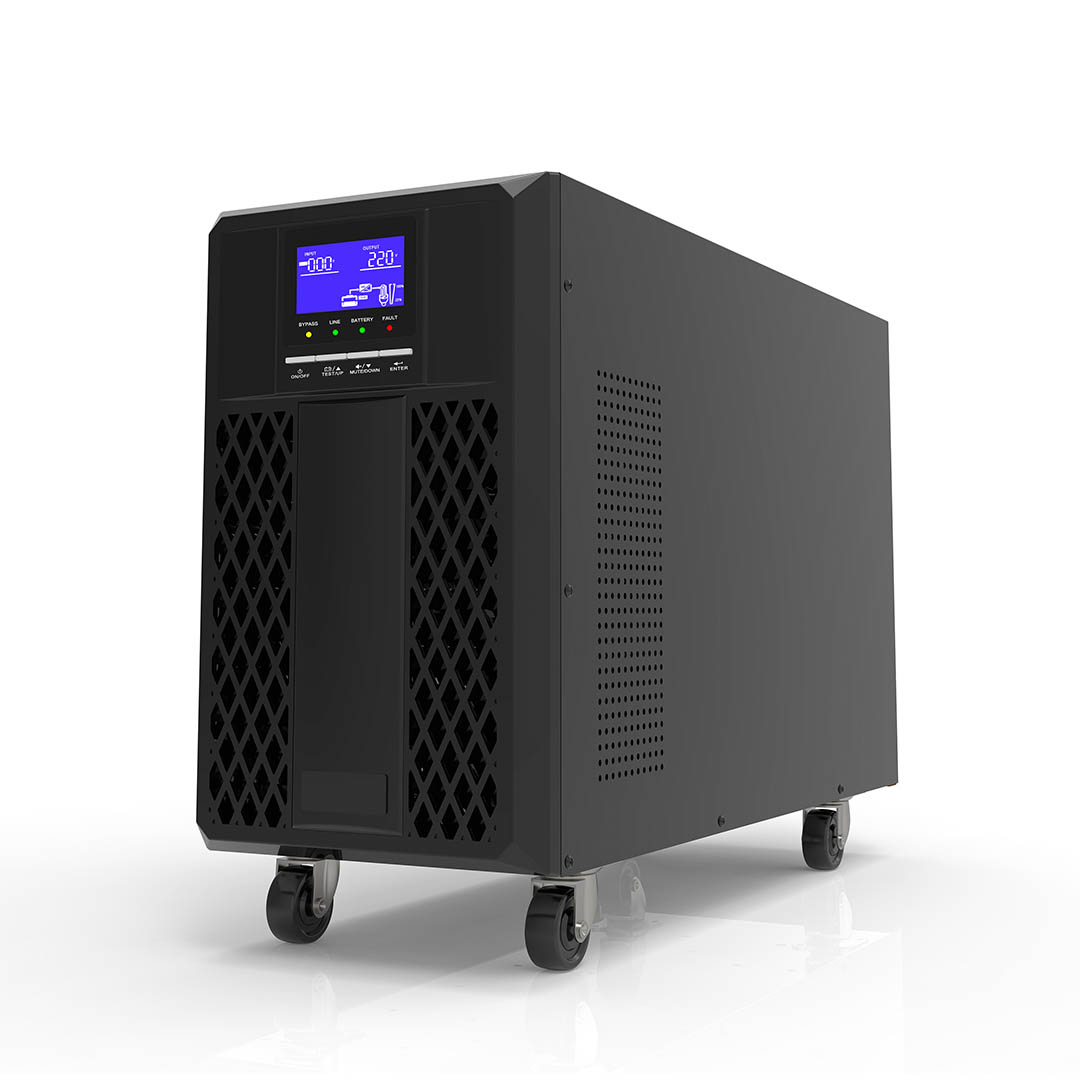

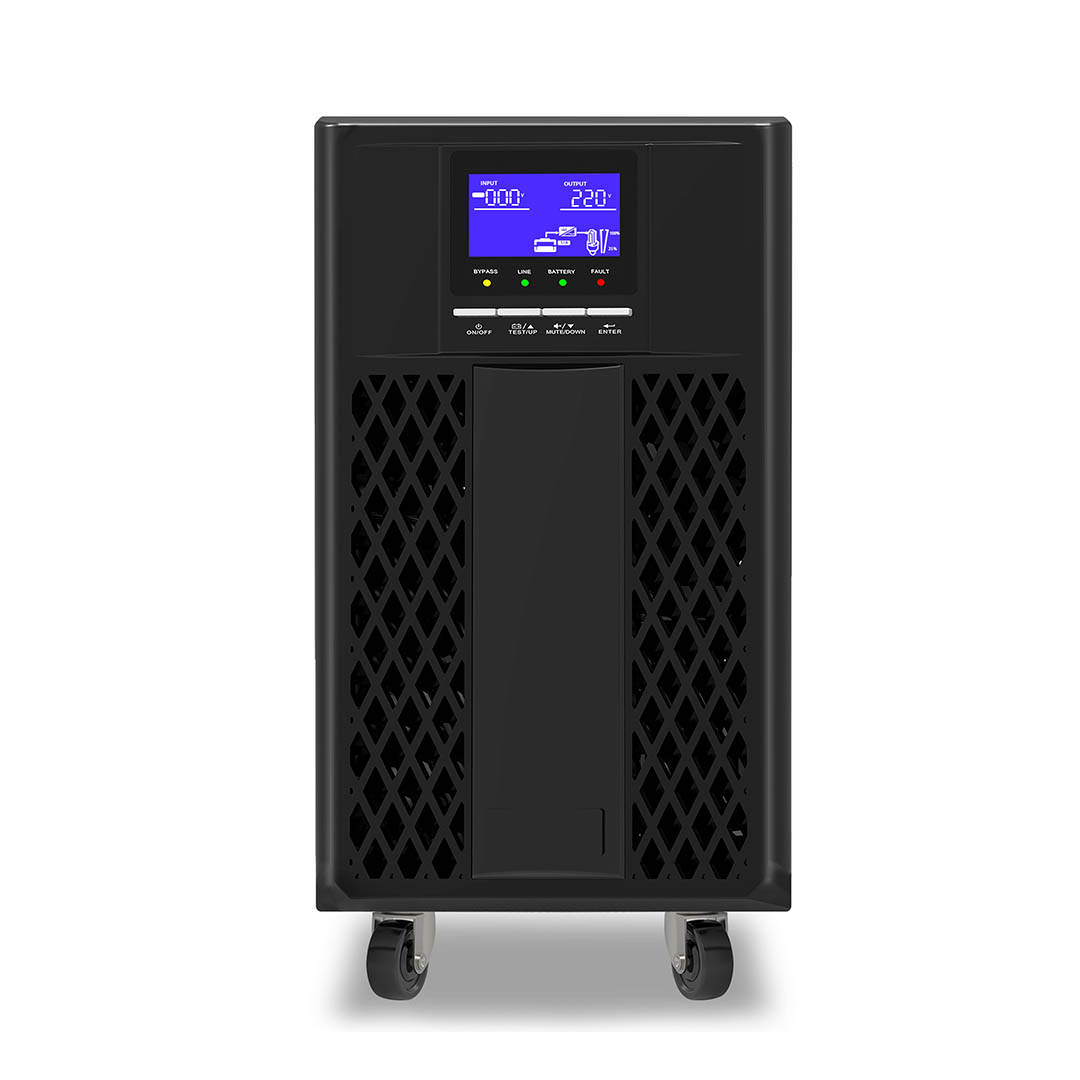

Double Conversion online UPS 3KVA

Product Description
Specifications are subject to change without further notice
♦ Double conversion online UPS
♦ High performance DSP based full digital controlled,pure sinewave output
♦ Having frequency converter operating mode

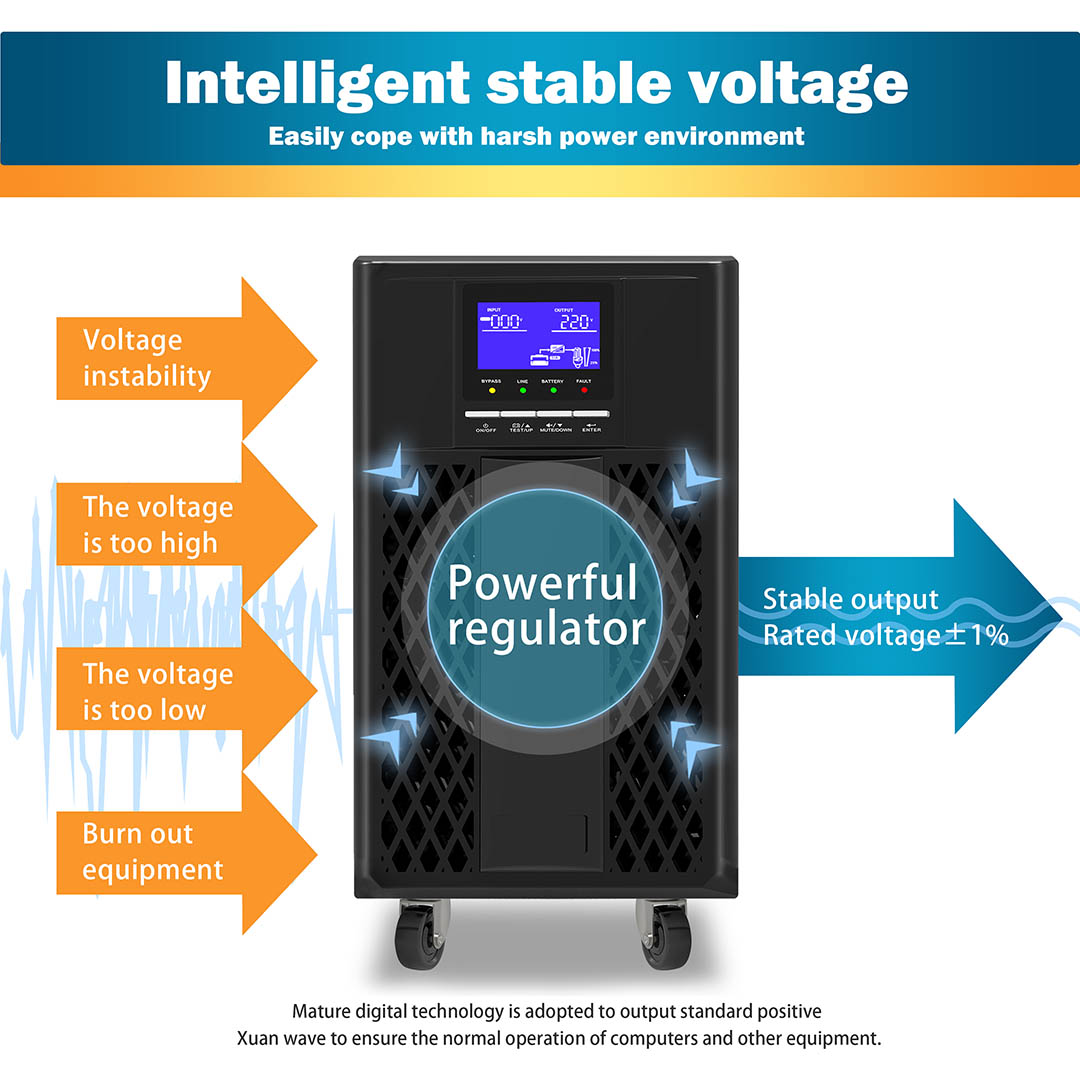

♦ Wide input voltage range,work well with different power quality
♦ Compatible with most generators set
♦ Embedded anti-input power factor corrector,avoid reactive power loss,saving power for user
♦ Having CEO mode. Enable best balance between energy saving and power protection
♦ Good loading adaptability,work well with laser printer,Ultrasonic cleaner
♦ Make with strong glass fiber base double side PCB(FR4),avoid dry solder,strong anti-vibration / anti-humidity / anti-dust capability
♦ Small profile,save installation space for user
♦ Accept deep customer-oriented,perfect match customer application requirement
♦ Attractive performance-cost ratio

Features
♦ Ultra wide I/P voltage range
♦ Clean power quality issues
♦ Adapt to harsh power condition
♦ Long back up time operation

♦ Compatible with genset

Specifications

Model item		1K(R)	1K(R)L	2K (R)	2K (R)L	3K (R)	3K(R)L	6K	6K(R)L	10K	10K(R)L
Rated power		1000VA/900W		2000VA/1800W		3000VA/2700W		6kVA/5.4kW		10kVA/9kW
AC Input	Input system	Single phase (L/N+PE)
	Nominal voltage	HV: 208/220/230/240Vac LV:100/110/120/127Vac
	Frequency	50/60Hz
	Voltage range	HV: 90~300VAC±5VAC LV: 60-145Vac±3VAC
	Frequency range	(40~70)±0.5Hz
	Input power factor	>0.99
	Bypass Voltage Range	HV: 115~285VAC×(1±3%) LV: 80~140VAC×(1±3%)
Battery Input	Nominal Voltage	24V	36V	48V	72V	72V	96V	192V	192V	192V/240V
	Battery Capacity & Quantity	12V/9AH x 2pcs	External	12V/9AH x 4pcs	External	12V/9AH x 6pcs	External	12V/9AH x 16pcs	External	12V/9AH x16/20pcs	External
	Backup Time	Half loaded≥8minutes, Full loaded ≥3minutes(standard)						Half loaded≥6minutes, Full loaded ≥3minutes(standard)
	Battery charger time	Charger to 90% battery capacity in 5 hours(standard) Dependent on the capacity of external batteries (long backup time)
AC Output	Output wiring system	Single phase (L/N+PE)
	Inverter Mode Output voltage	HV:208/220/230/240Vac±2% LV:100/110/120/127Vac±2%
	Waveform	Sine Wave
	Harmonic Distortion	THD<2% (linear load) THD<7% (nonlinear load)
	Output frequency	50/60±4Hz (Sync mode) 50/60Hz±1% (Fix Freq. mode)
	Overload capability	105～125%≥ 60s,126～150%≥30s The recover point is 70%
	Transfer time	Battery <-> Line Mode :0ms
Efficiency	Line Mode	HV:86% LV:86%		HV:88% LV:86%		HV:89% LV:87%		HV:92% LV:88%		HV:93% LV:89%
	Battery Mode	HV&LV:85%		HV&LV:86%		HV&LV:87%
Communications		RS232 RS485(optional), Dry contact(optional), Network Card(Option)
Alarm Function		AC/DC input under abnormal, overload condition and Inverter problems
Protection Function		AC input or output above or below the range of voltage, overload, over temperature and short circuit protection
Noise		<50dB						<55dB
