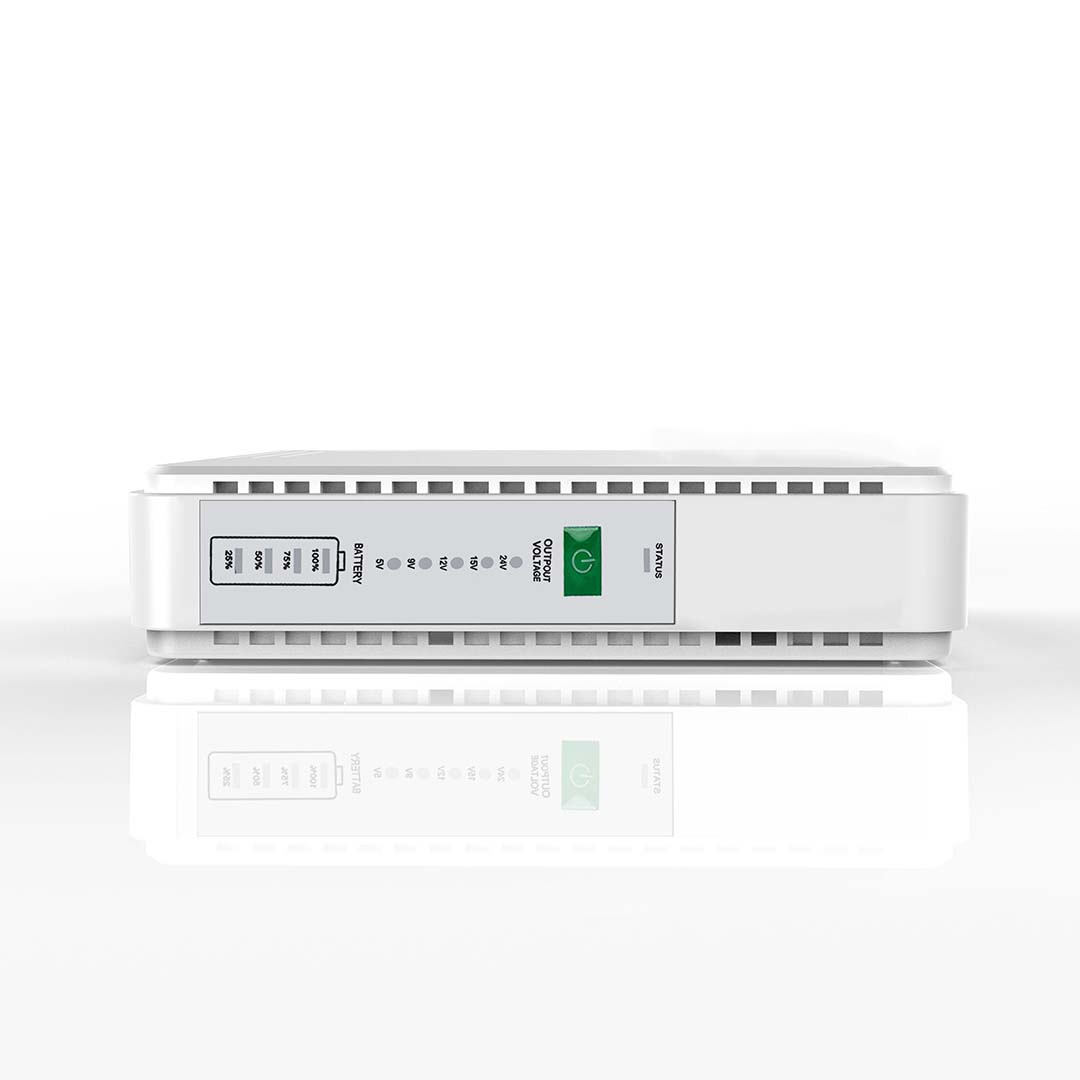

POE DC UPS 17-120W (POE2144L)-DC UPS-Fenice Power Co., Ltd.

Overview

Quick Details

Warranty:1 year, 1 Year after delivery
Place of Origin:Guangdong, China
Brand Name:ODM/OEM
Model Number:POE2144L
Phase:Single Phase
Protection:Overvoltage
Weight:0.25kgs

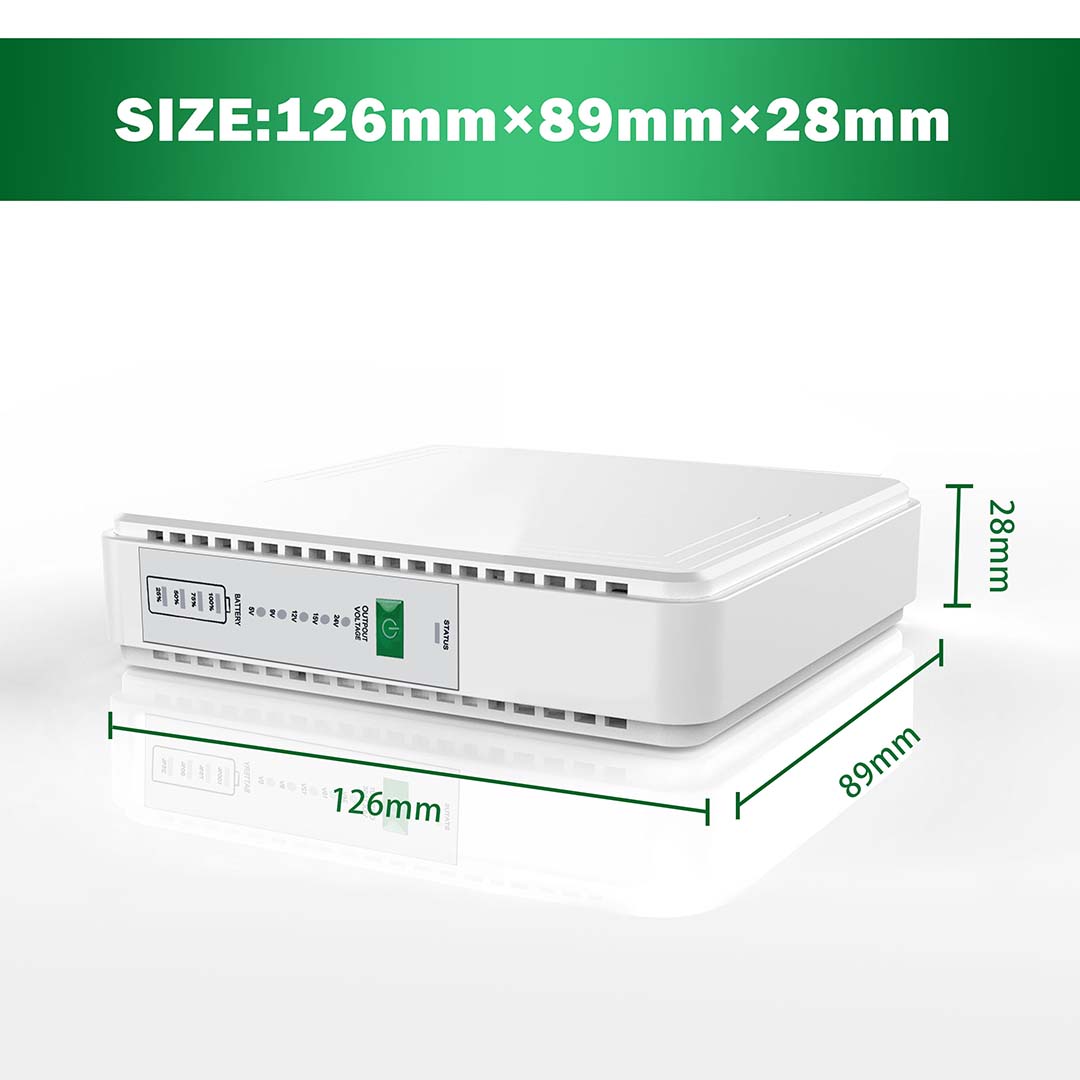

Dimension:126*89*28
Type:Line Interactive
Application:Security / Monitoring / Alarm

Output power (Max.):21W mini poe ups
Input voltage:100VAC-240VAC

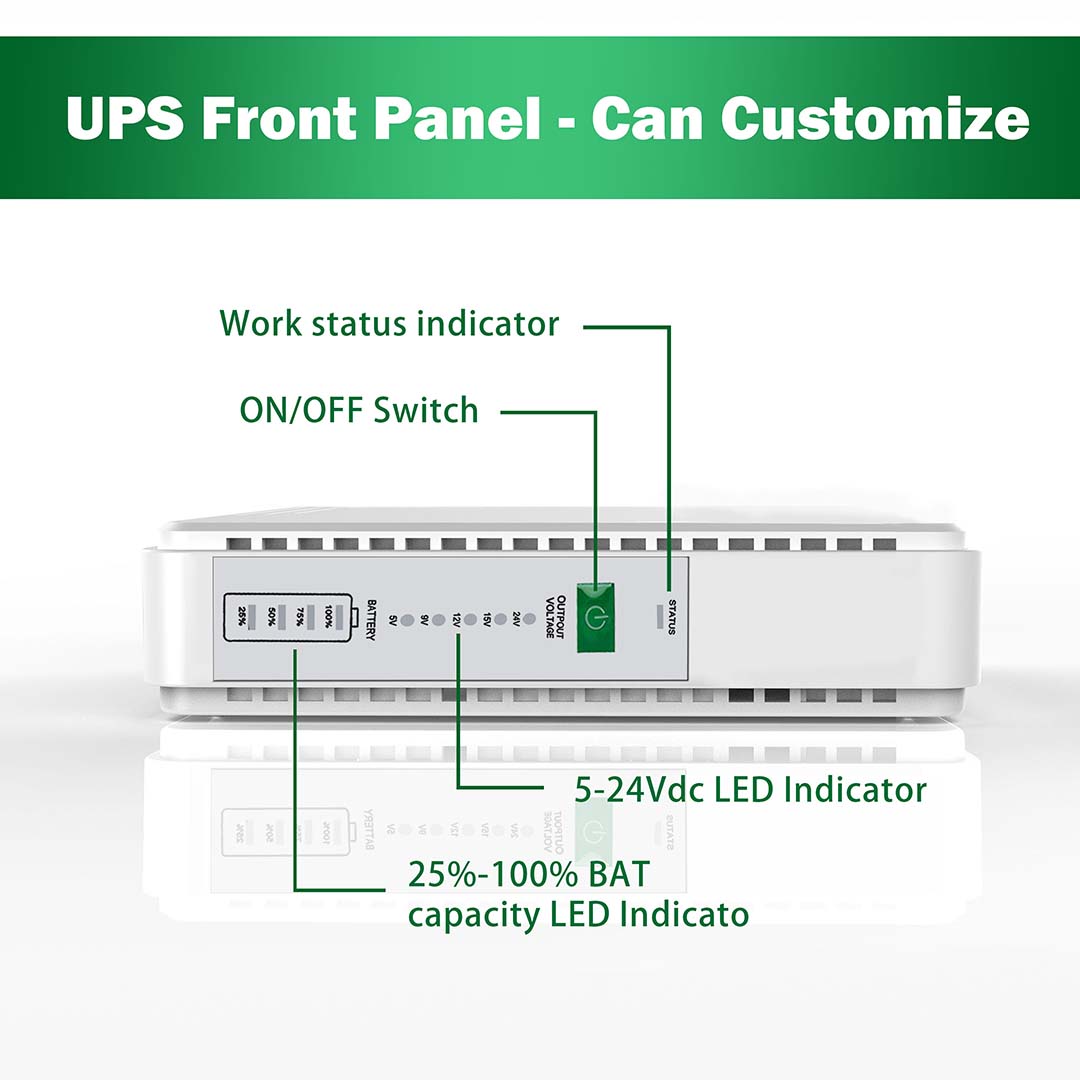

Display:LED
Appplication:Wifi router, CCTV, IP camera, POS,Mobile
Battery Type:2*2200MAH
Wave Form:Simulated Sine Wave
Certification:CE/ROSH/TUV/INTERTEK
Material:Plastic
Backup time:8-10 hours for wifi router

Packaging & Delivery

Selling Units:Single item
Single package size: 16X11X3 cm
Single gross weight:10.000 kg
Package Type:one pcs put in one poly bag, together with power line put into one color box, 24 pcs/Carton

Lead time:

Quantity(sets)	1 - 500	>500
Est. time (days)	7	To be negotiated

Specifications

Model	POE2144L
Related working voltage	100-240Vac/50-60Hz
Output power (Max.)	21W

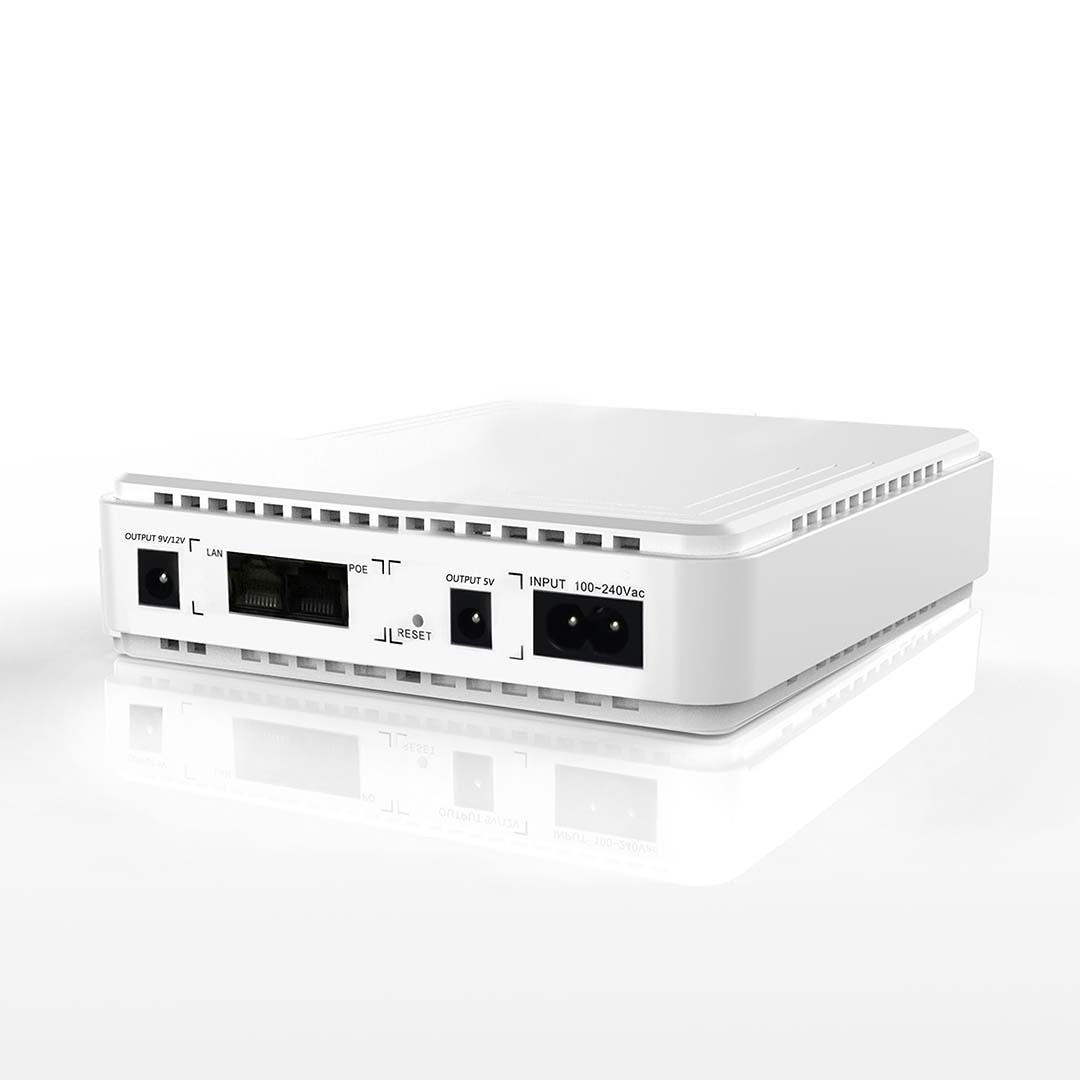

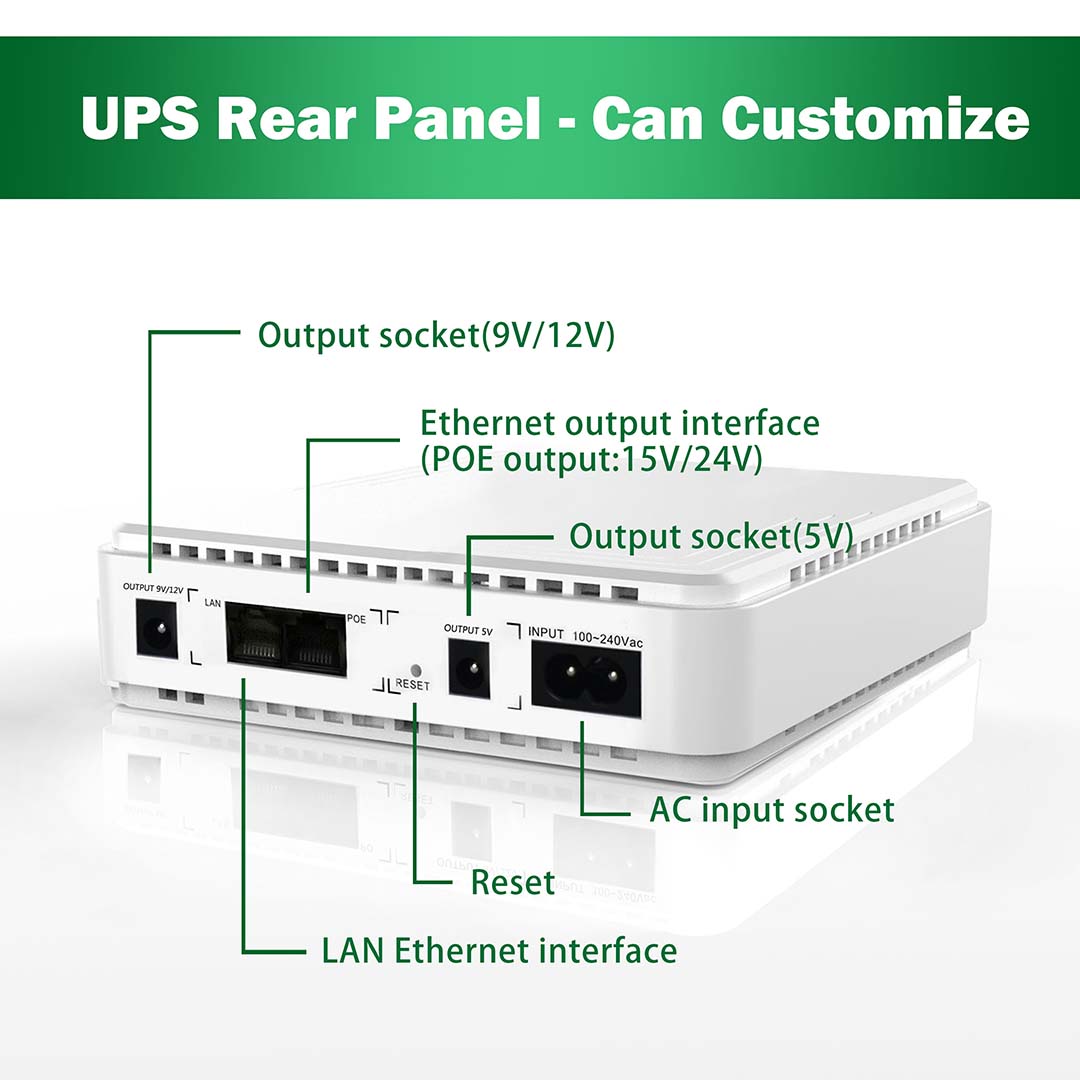

Output	NA	DC interface	POE interface
Output voltage (selectable)	5Vdc	24Vdc/15Vdc 12Vdc/9Vdc	24Vdc/15Vdc 12Vdc/9Vdc
Output polarity	NA		+4,5pins-7,8pins
Output power & current (in common)	1.0A/5W	9V/1A 12V1A 15V/1A 24V/0.6A	9V/1A 12V1A 15V/1A 24V/0.6A
Qty.& Capacity of battery	2200mAh*2
Unit dimension(mm) 1268928	1268928
Net weight(kg)	0.25

FAQ

Frequently asked questions of ups with solar panel

1.Why should I choose your factory
We have 15 years experience in power system production, 10 years experience in exporting. We're factory with competitive price.

2. Are you ODM/OEM factory?
Yes.

3. What capacity do you have for line interactive ups and inverter?
We have 450/650/850/1000/1500/2000VA for line interactive ups, 1200/2400VA for inverter. Anyway, you can customize the capacity.

4. Can you ship me a sample?
Yes, we have many stock free sample, you just need to pay the delivery cost.

5. Is the product safe and environmental?
Yes, it has overload, overcharge, discharge protection. We got RoHS certification.

6. Do your products have warranty?
Of course, 1 year warranty after you received the line interative ups and inverter.

7. What's the difference of Line Interactive UPS and Inverter?
Inverter has large capacity, can't supply power immediately. Line Interactive UPS has small capacity, can supply power immediately.
