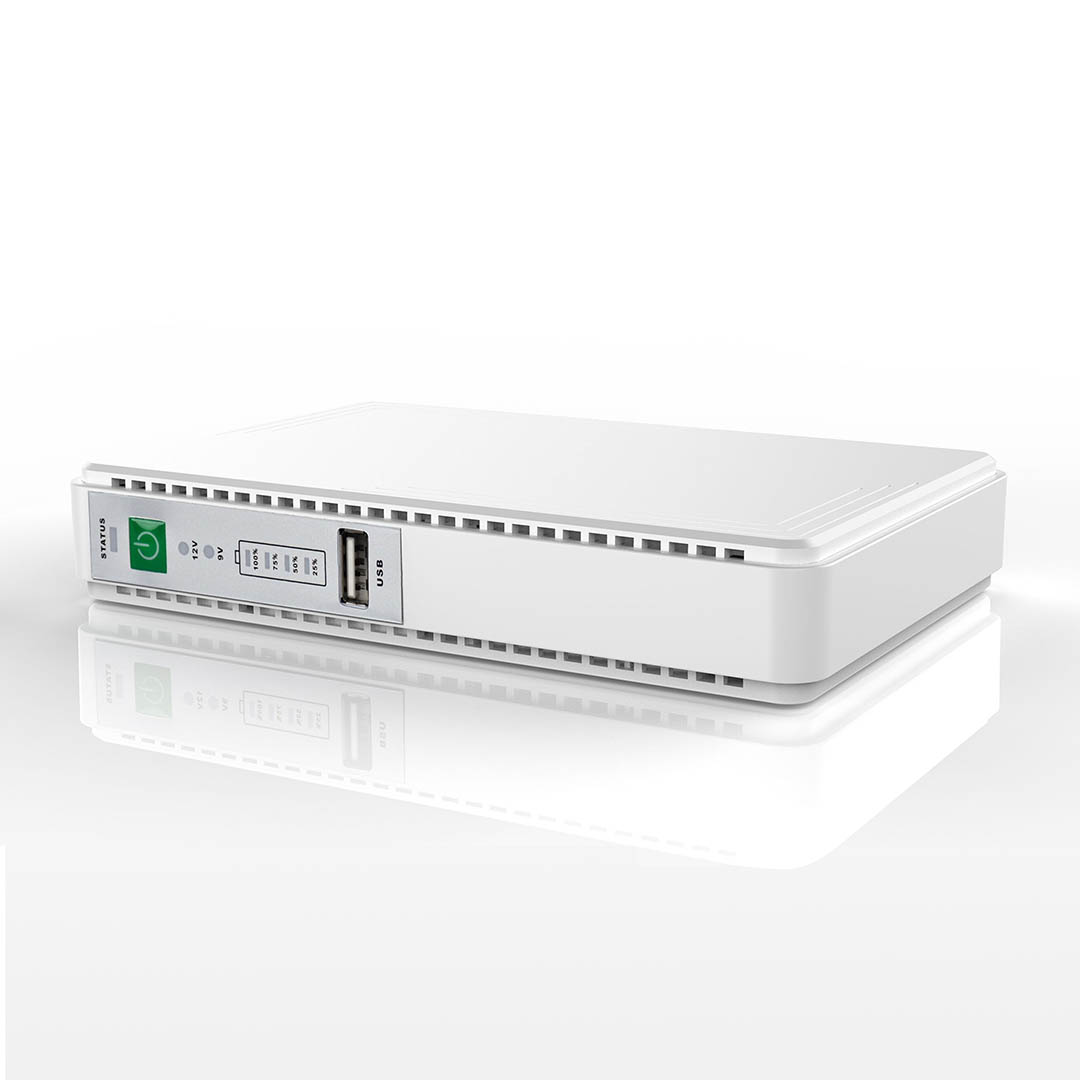

POE DC UPS 17-120W (POE2188L)-DC UPS-Fenice Power Co., Ltd.

Overview

Quick Details

Warranty:1 Year, 12 Months

Place of Origin:Guangdong, China

Brand Name:OEM
Model Number:POE2188L
Phase:Single Phase
Protection:Unbalanced Loads

Type:Line Interactive

Product name:DC UPS

Capacity:21W

Battery Type:Lithium Battery
Color:White
Display:LED
Frequency:50 - 60Hz
Input voltage:5V / 9V/ 12V/ 15V / 24V
Dimension:160*105*28
Appplication:Monitor / Ipad / wifi / phone

Packaging & Delivery
Selling Units:Single item
Single package size: 11X8X11 cm
Single gross weight:0.400 kg
Package Type:One DC ups put into one color box, 24 pieces put into one outer box.
Lead Time:

Quantity(pieces)	1 - 1000	1000-10000	>10000
Est. Time(weeks)	3	4	To be negotiated

New Portable Mini DC Ups Poe Mini Ups 5V 9V 12V 15V 24V for Monitor

Product description:
High capacity lithium battery, provides long backup to the loads.
High compatibility, suitable for most digital products in the market.
USB output (5V), can supply charging for digital products like mobile phone, PDA, PSP, IPOD, MP4...etc.
Power Over Ethernet (POE) can transmit the data and power at the same time to simplify wire set.
Intelligent circuit design with over -charging, over discharging and short-circuit protections.
Built-in adapter allows wide AC voltage range (100-240Vac).
Auto restart.
8800mah Lithium Battery Ups 9v 12v Dc 15v 24v Poe Mini Ups

Features

1) High capacity lithium battery, provides long backup to the loads.
2) High compatibility, suitable for most digital products in the market.
3) USB output (5V), can supply charging for digital products like mobile phone, PDA, PSP, IPOD, MP4...etc.
4) Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.
5) Intelligent circuit design with over-charging, over discharging and short circuit protections.
6) Built-in adapter allows wide AC voltage range (100-240Vac).
7) Auto restart

Specification:

Model	POE2188L
Related working voltage	100-240Vac / 50-60Hz
Output power(Max.)	21W

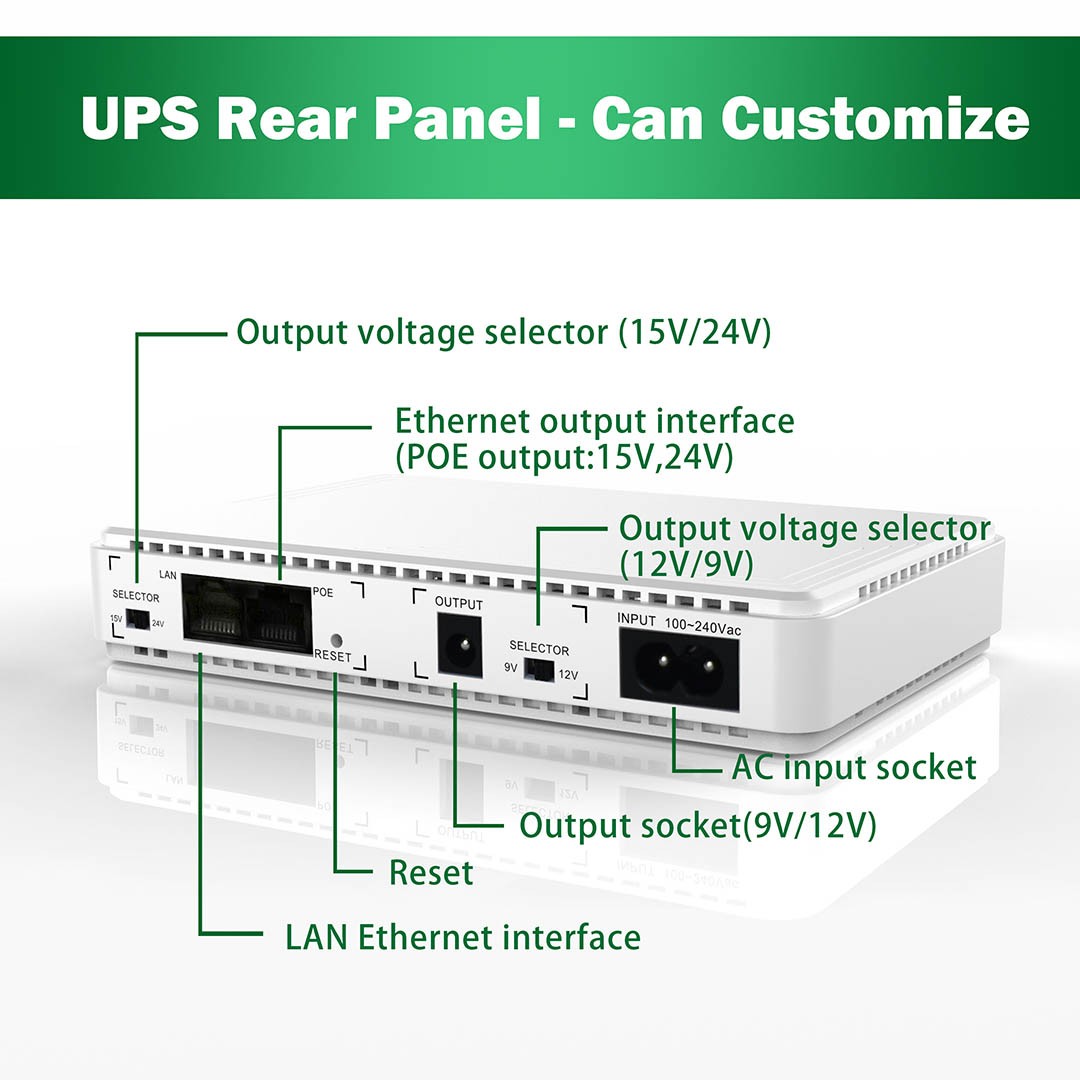

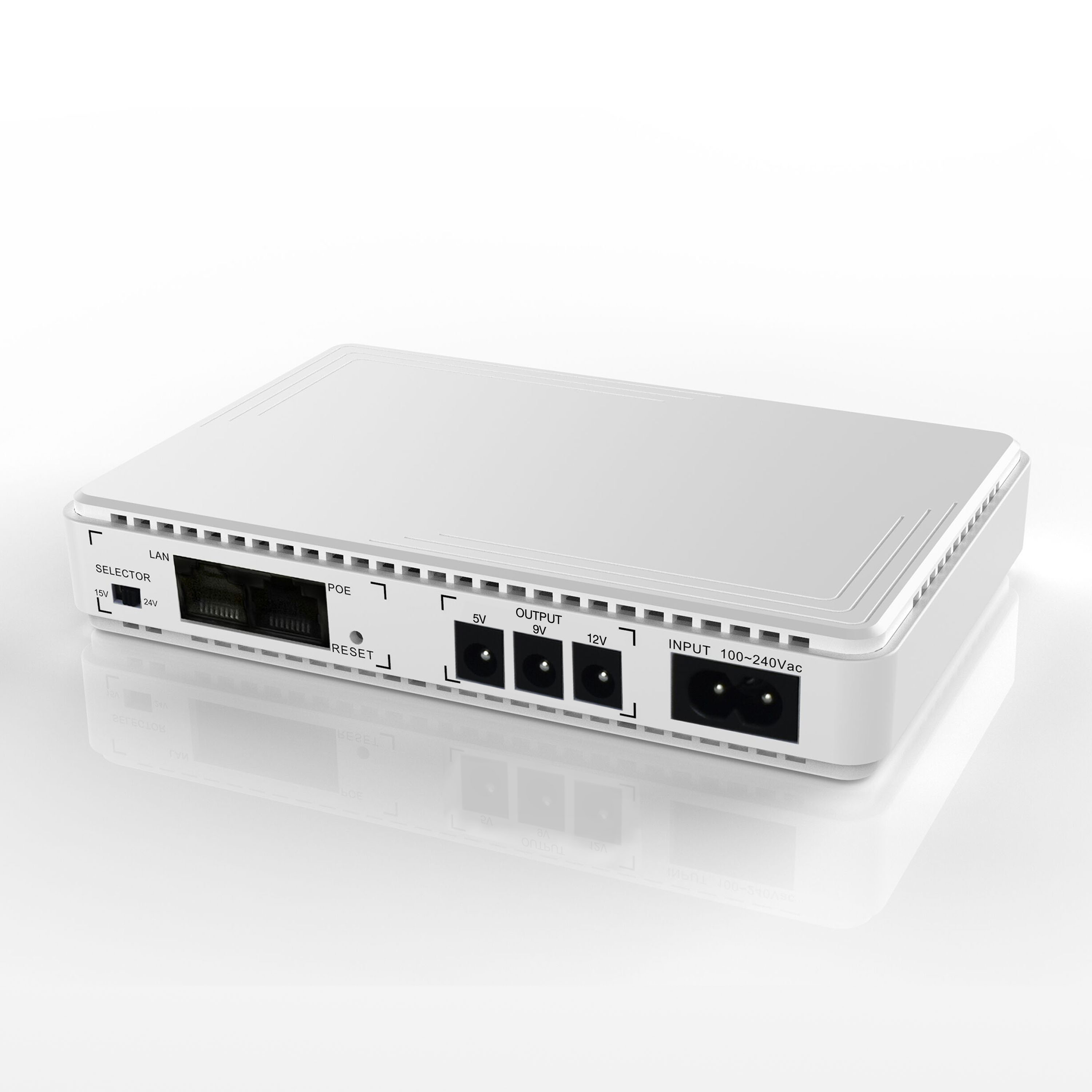

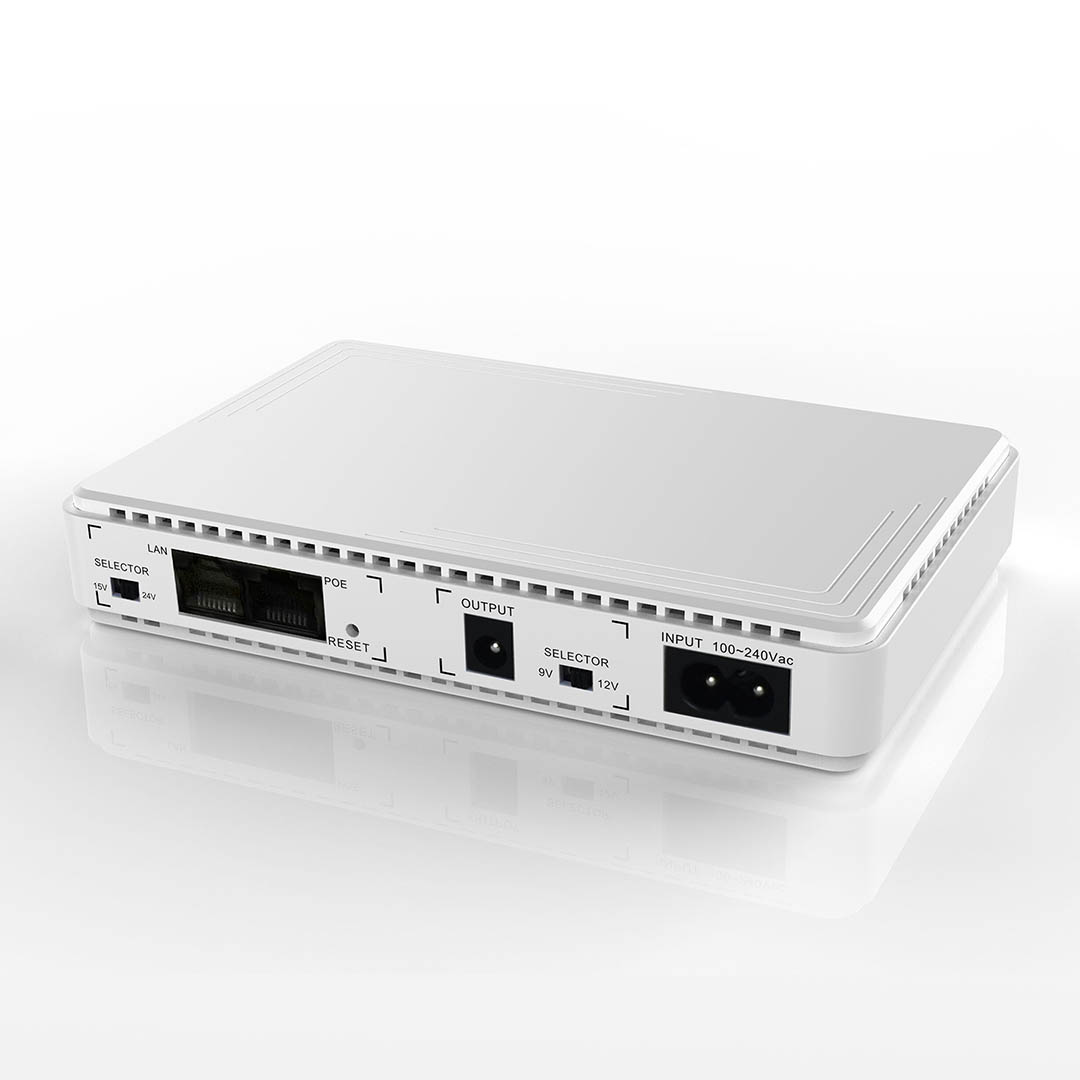

Output	USB interface	DC interface	POE interface
Output voltage(selectable)	5Vdc	9Vdc / 12Vdc	15Vdc/24Vdc
Output polarity	NA	8800mah Lithium Battery Ups 9v 12v Dc 15v 24v Poe Mini Ups	+4,5 pins- 7,8pins
Output power & current(in common)	1.0A/5W	1.0A/12W	0.6A(15V 10W) or (24V 15W)
QTY.& Capacity of battery	2200mAh*4

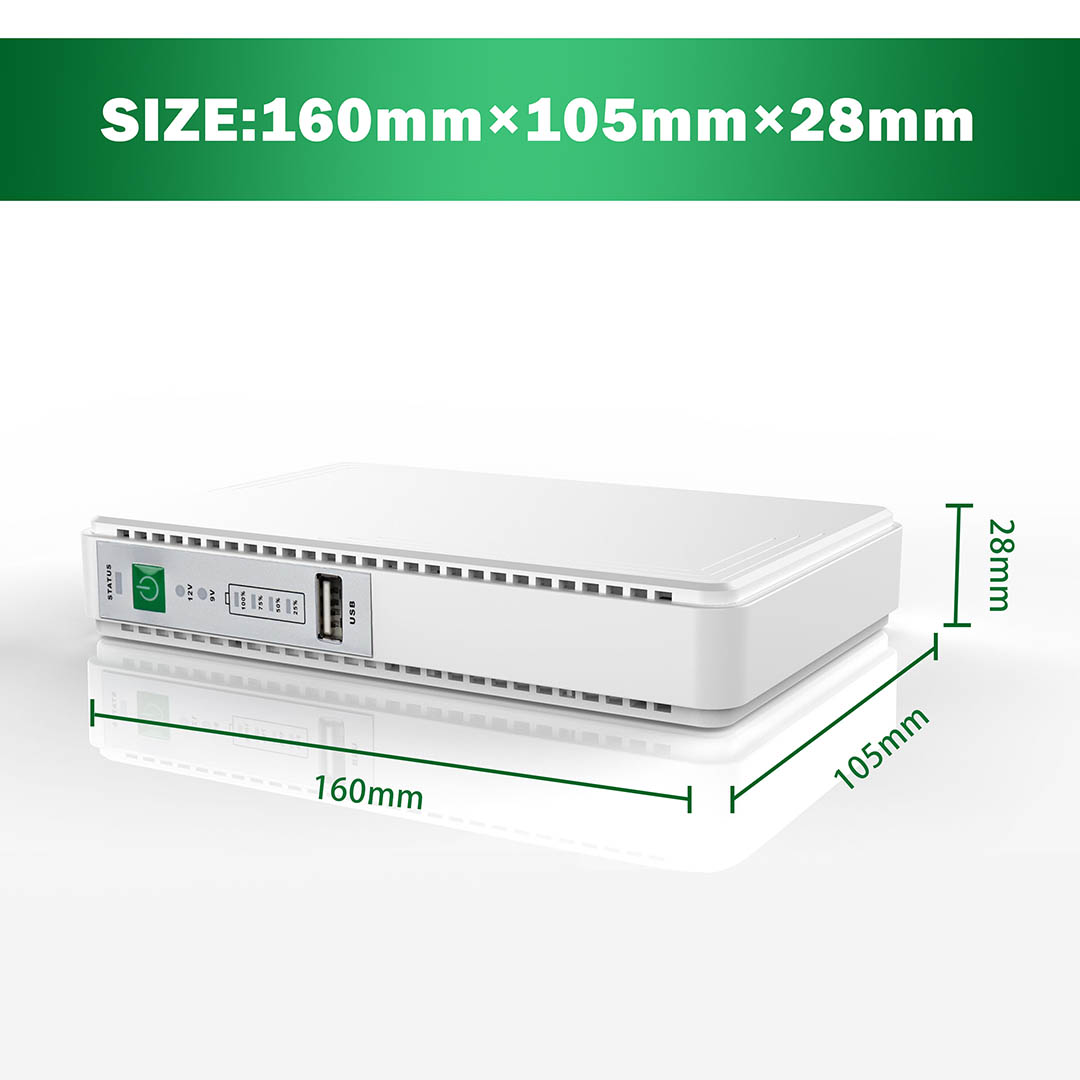

Unit dimension(mm)	16010528
Net weight(kg)	0.4

FAQ

Frequently asked questions of ups with solar panel

1. Why should I choose your factory

We have 15 years experience in power system production, 10 years experience in exporting. We're factory with competitive price.

2. Are you ODM/OEM factory?

Yes.

3. What capacity do you have for line interactive ups and inverter?

We have 450/650/850/1000/1500/2000VA for line interactive ups, 1200/2400VA for inverter. Anyway, you can customize the capacity.

4. Can you ship me a sample?

Yes, we have many stock free sample, you just need to pay the delivery cost.

5. Is the product safe and environmental?

Yes, it has overload, overcharge, discharge protection. We got RoHS certification.

6. Do your products have warranty

Of course, 1 year warranty after you received the line interative ups and inverter.

7. What's the difference of Line Interactive UPS and Inverter?

Inverter has large capacity, can't supply power immediately. Line Interactive UPS has small capacity, can supply power immediately.
